2002 Catalina 470

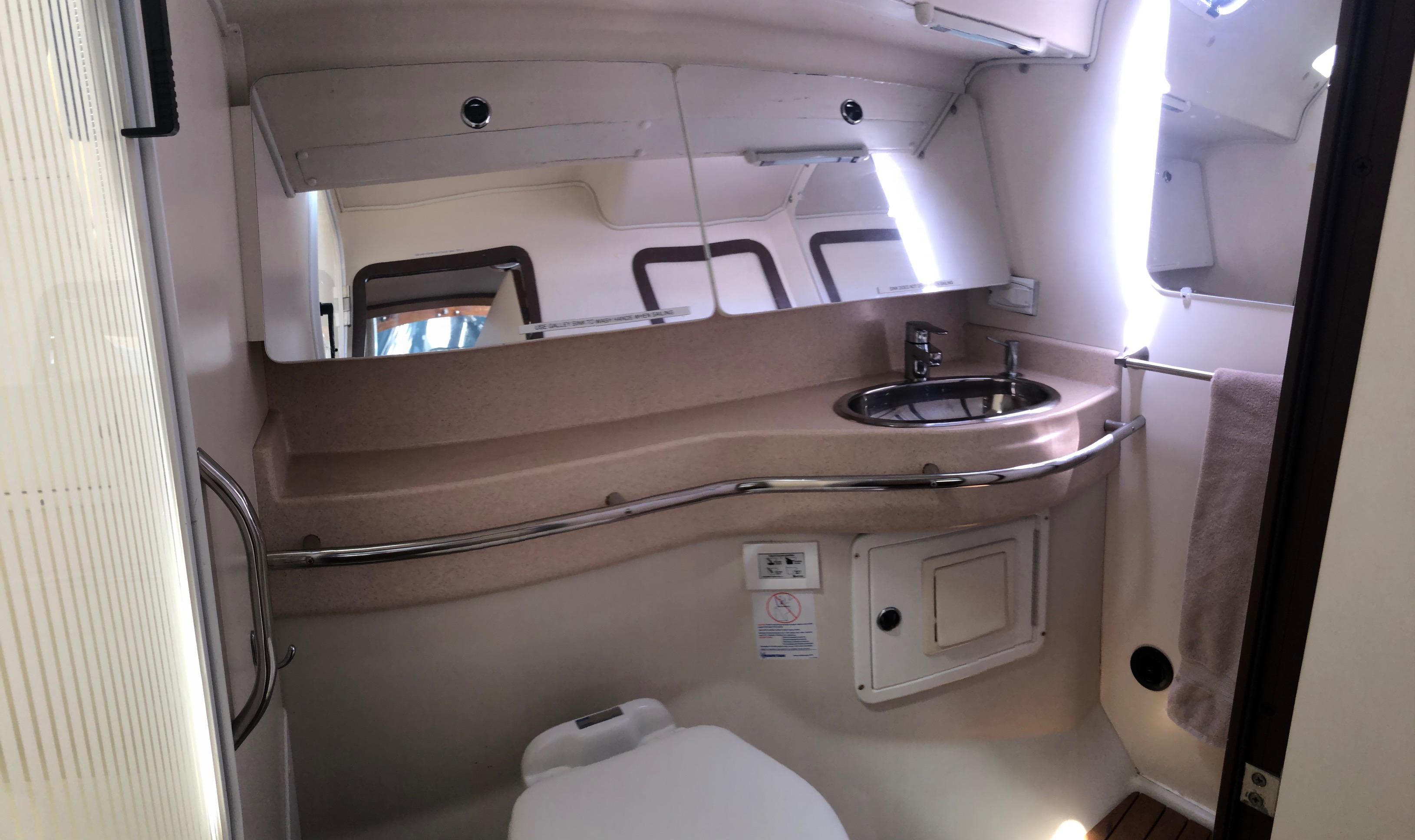

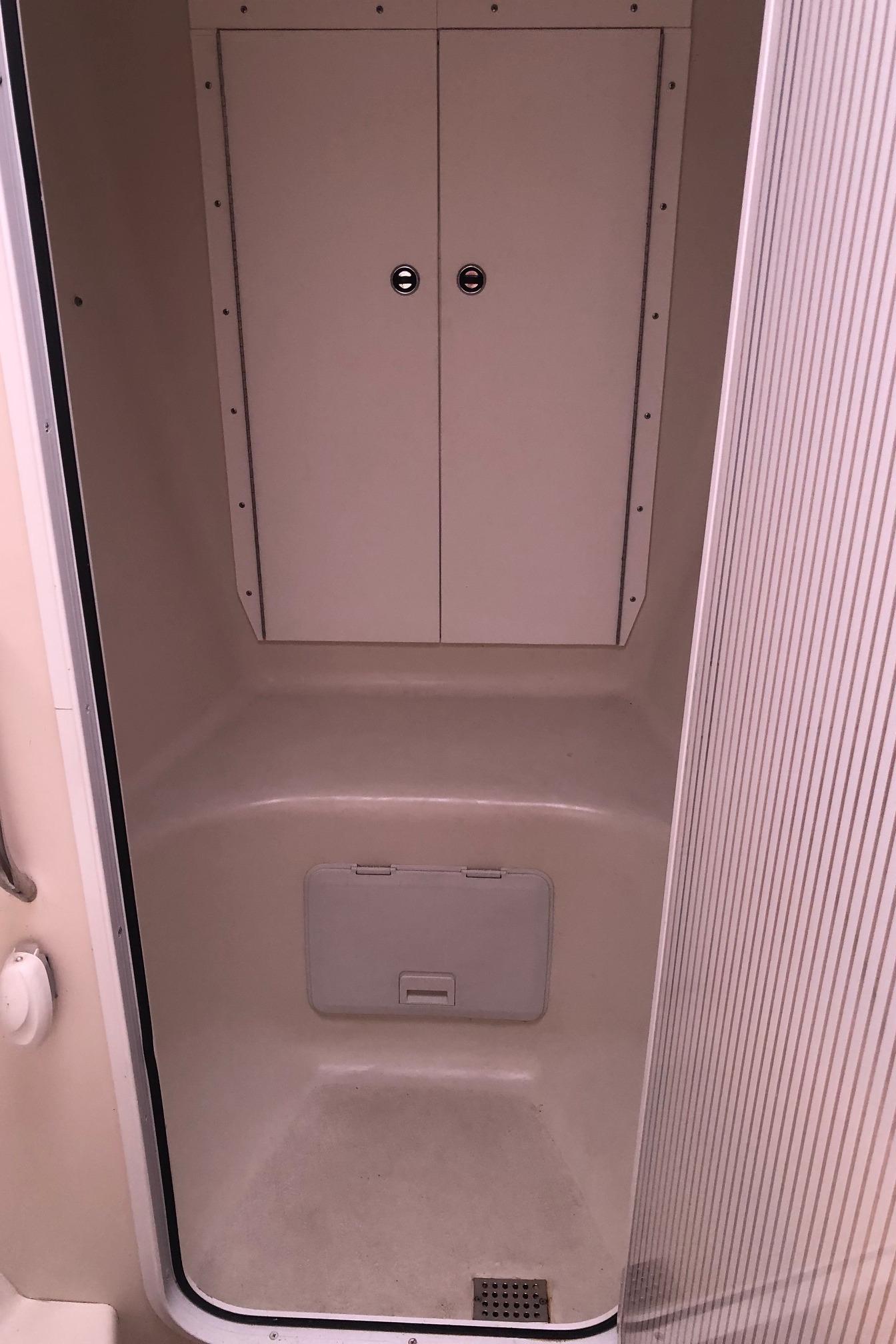

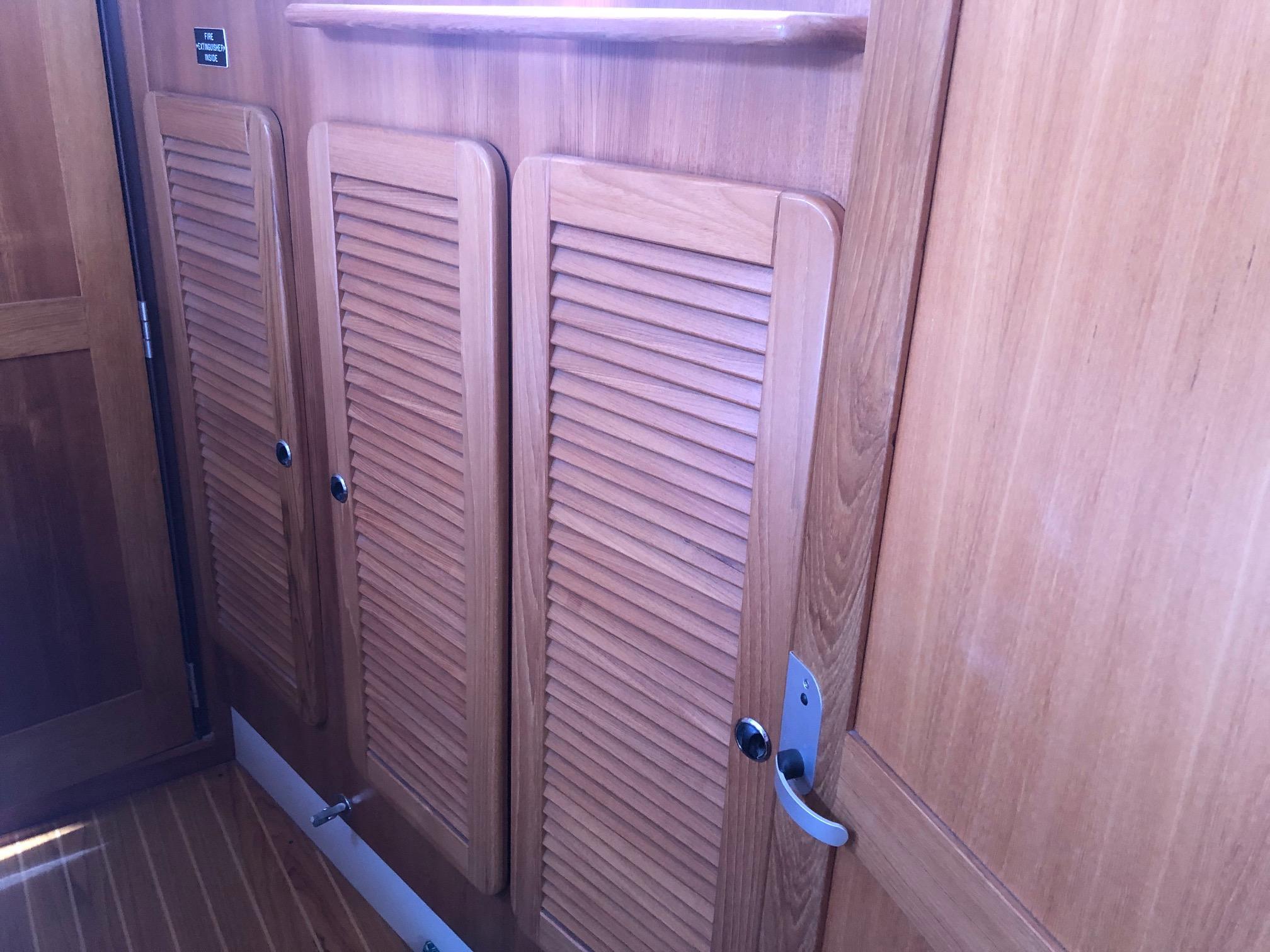

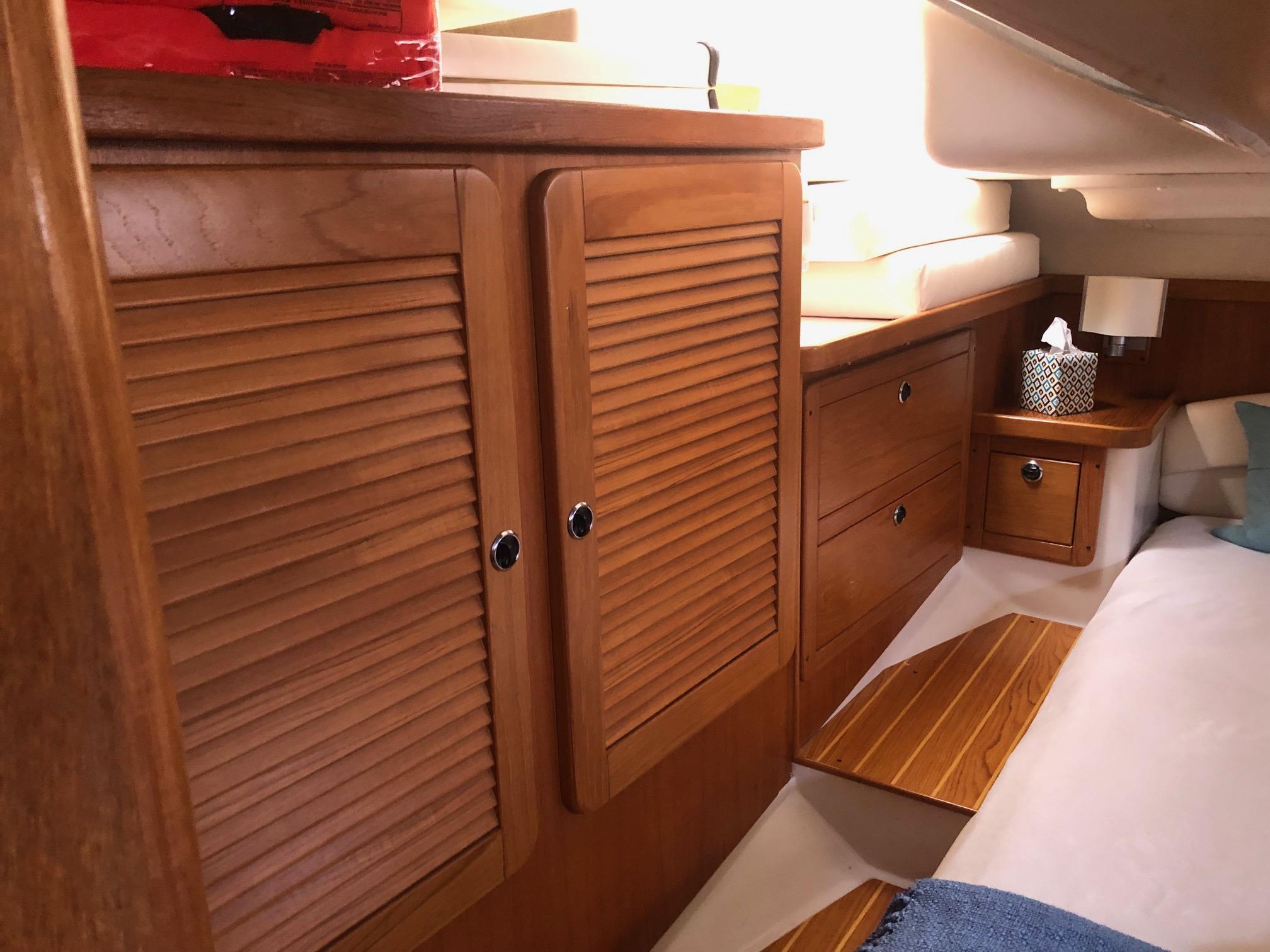

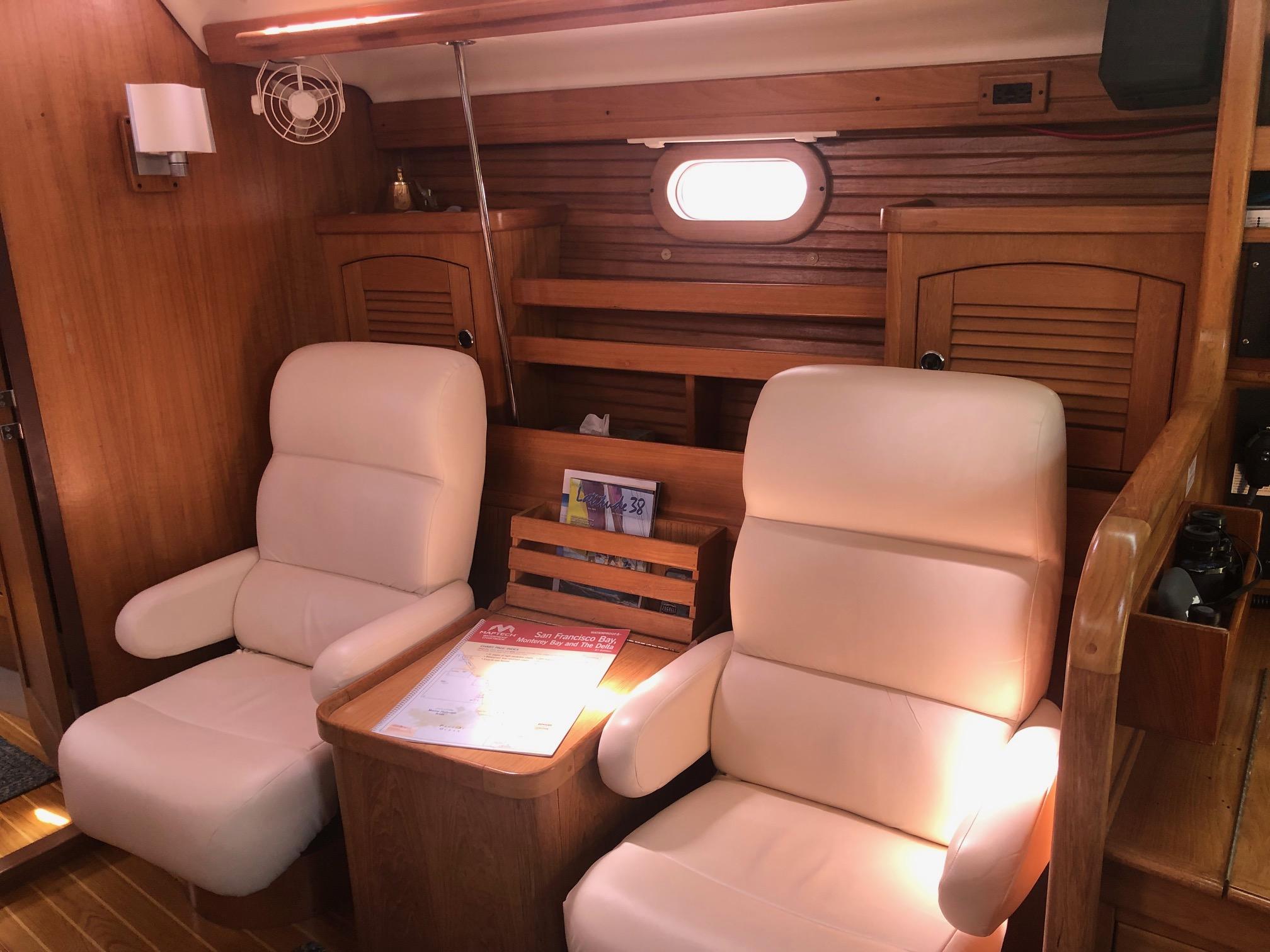

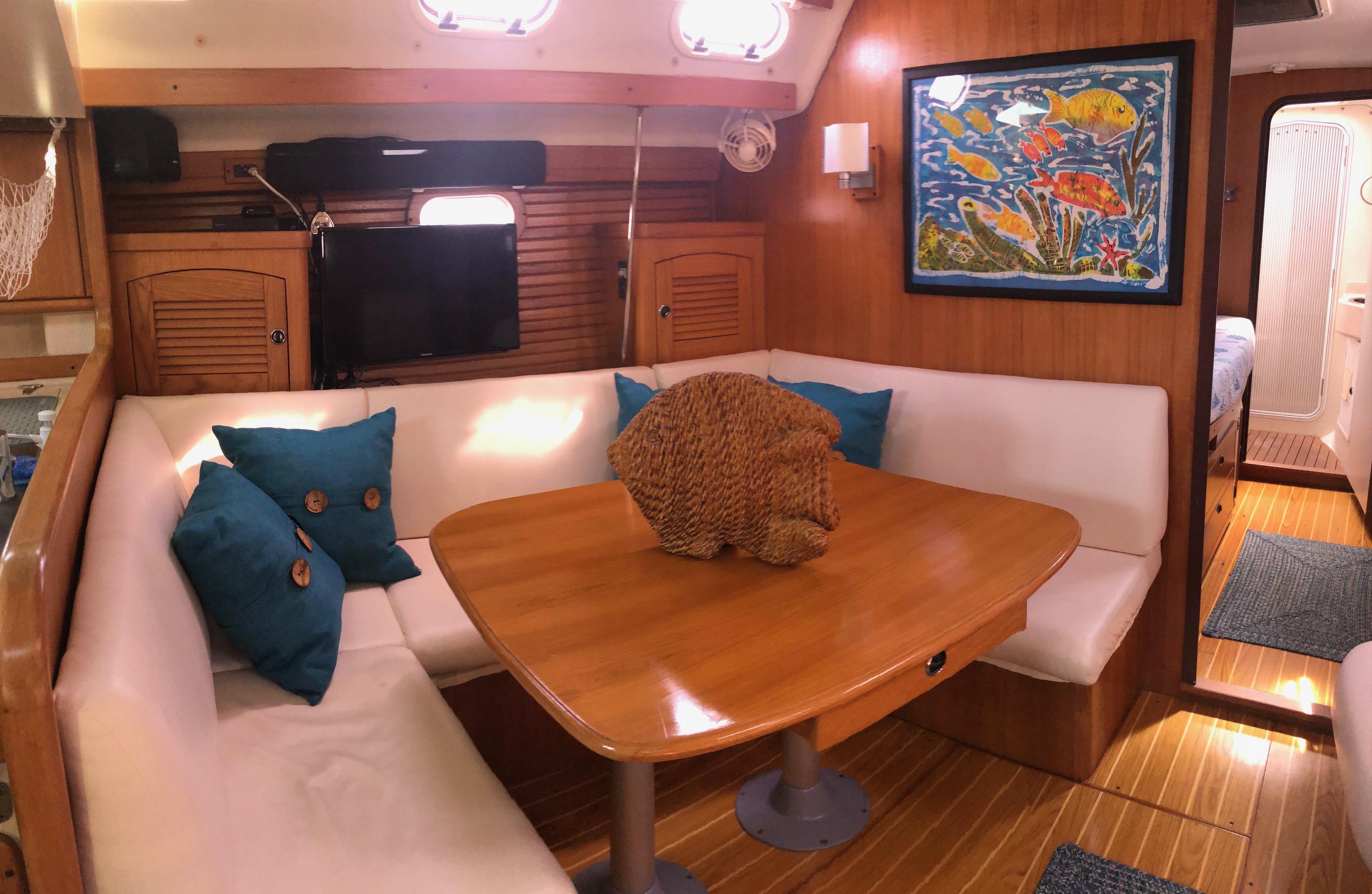

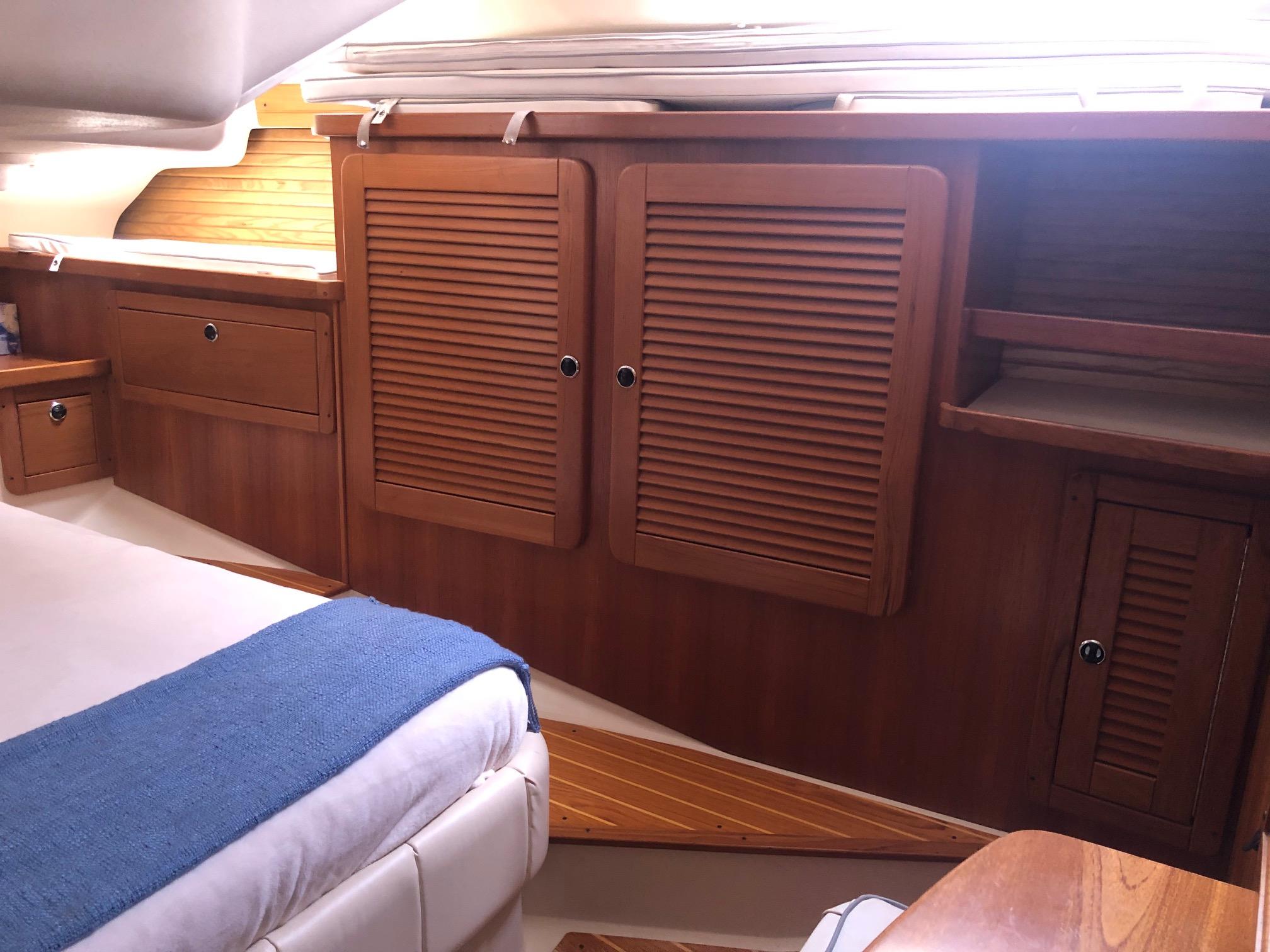

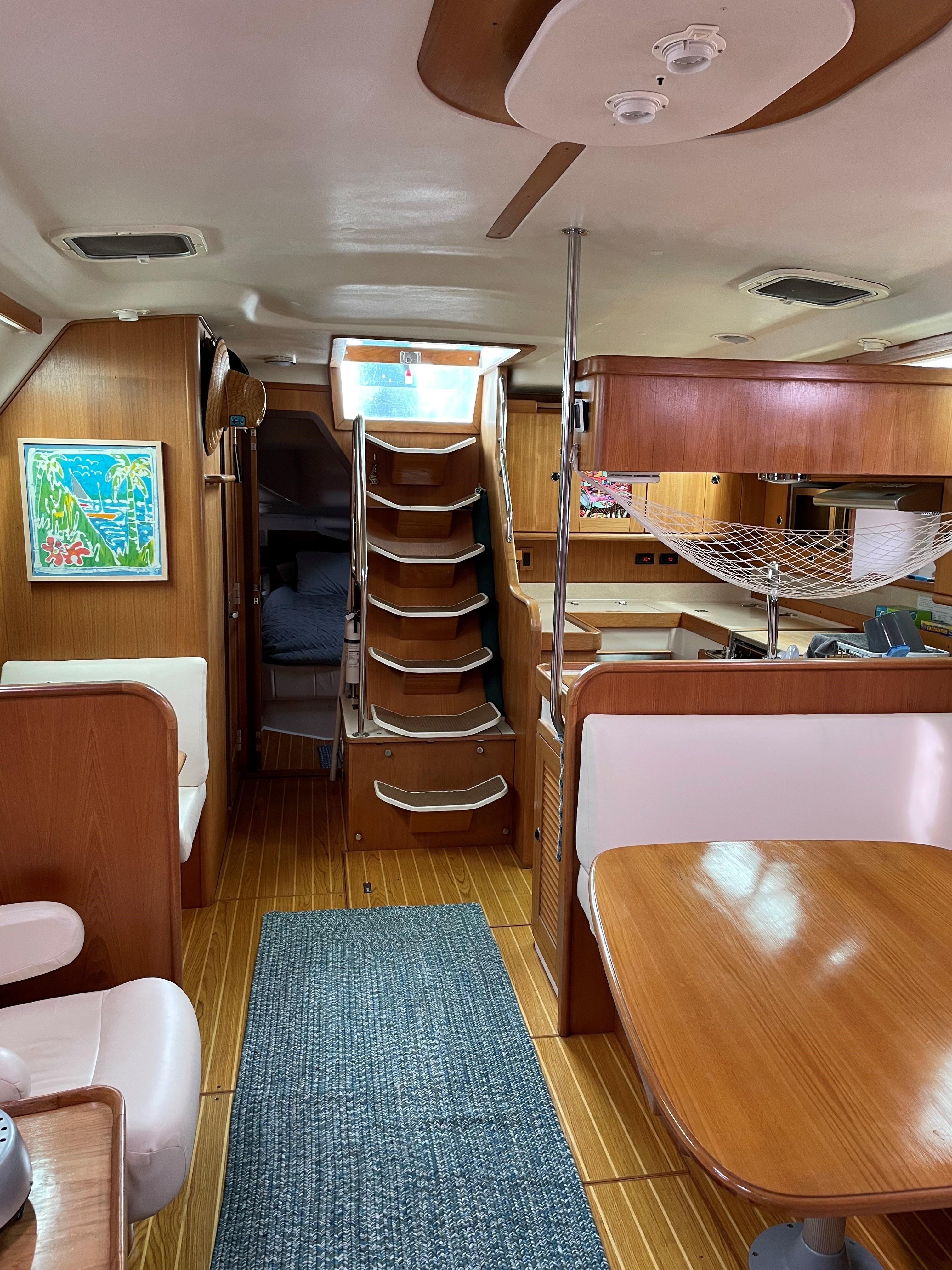

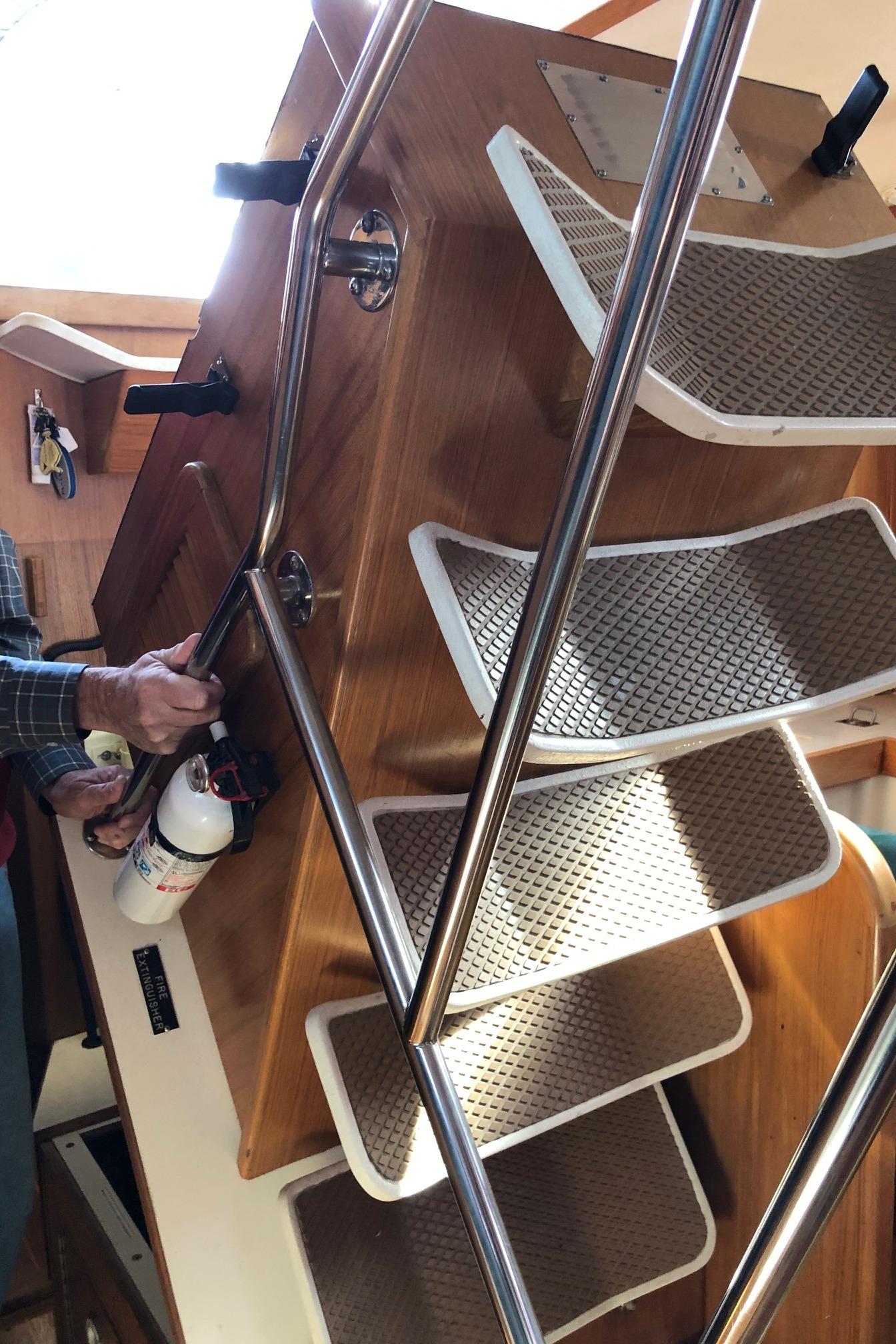

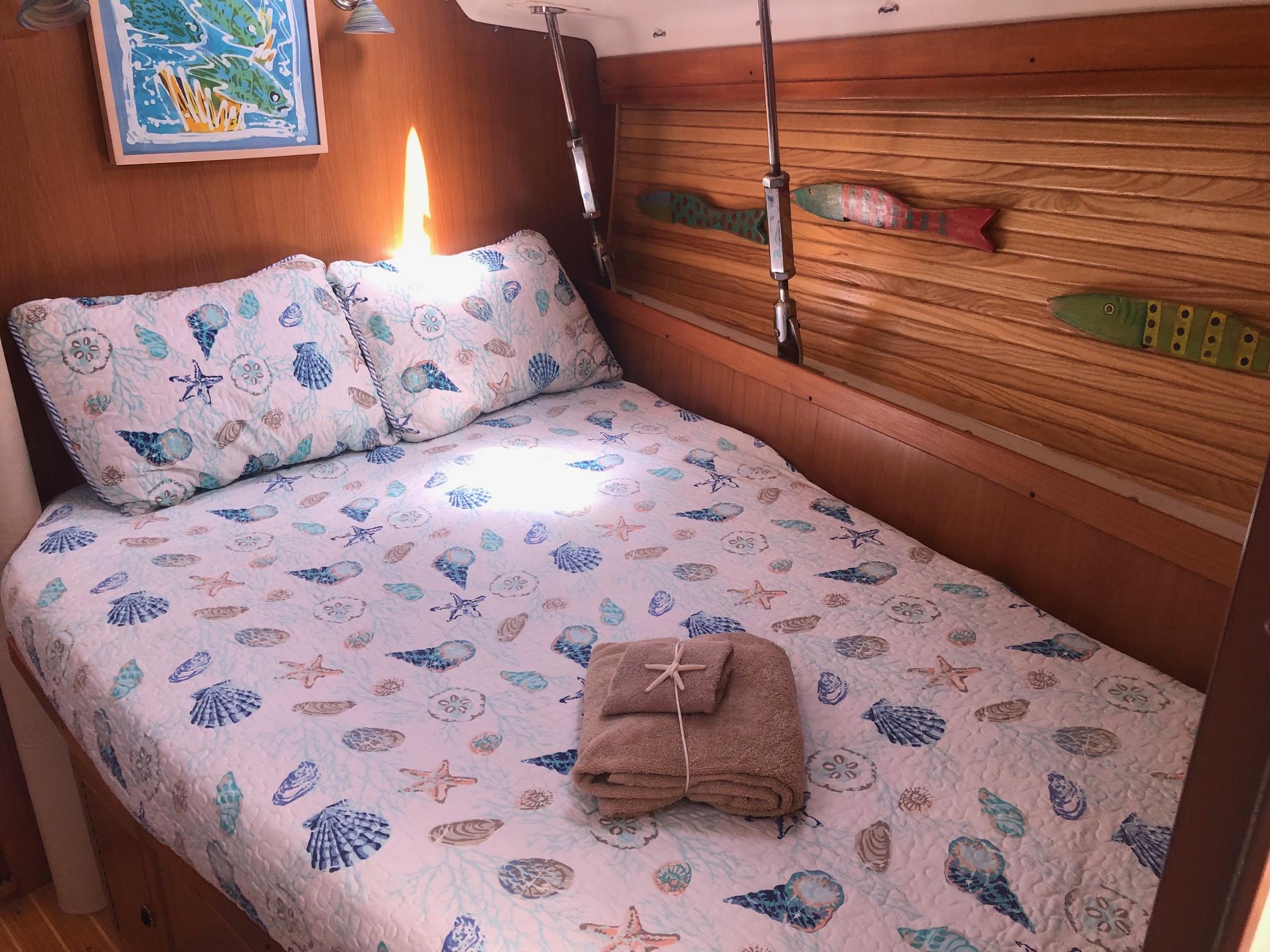

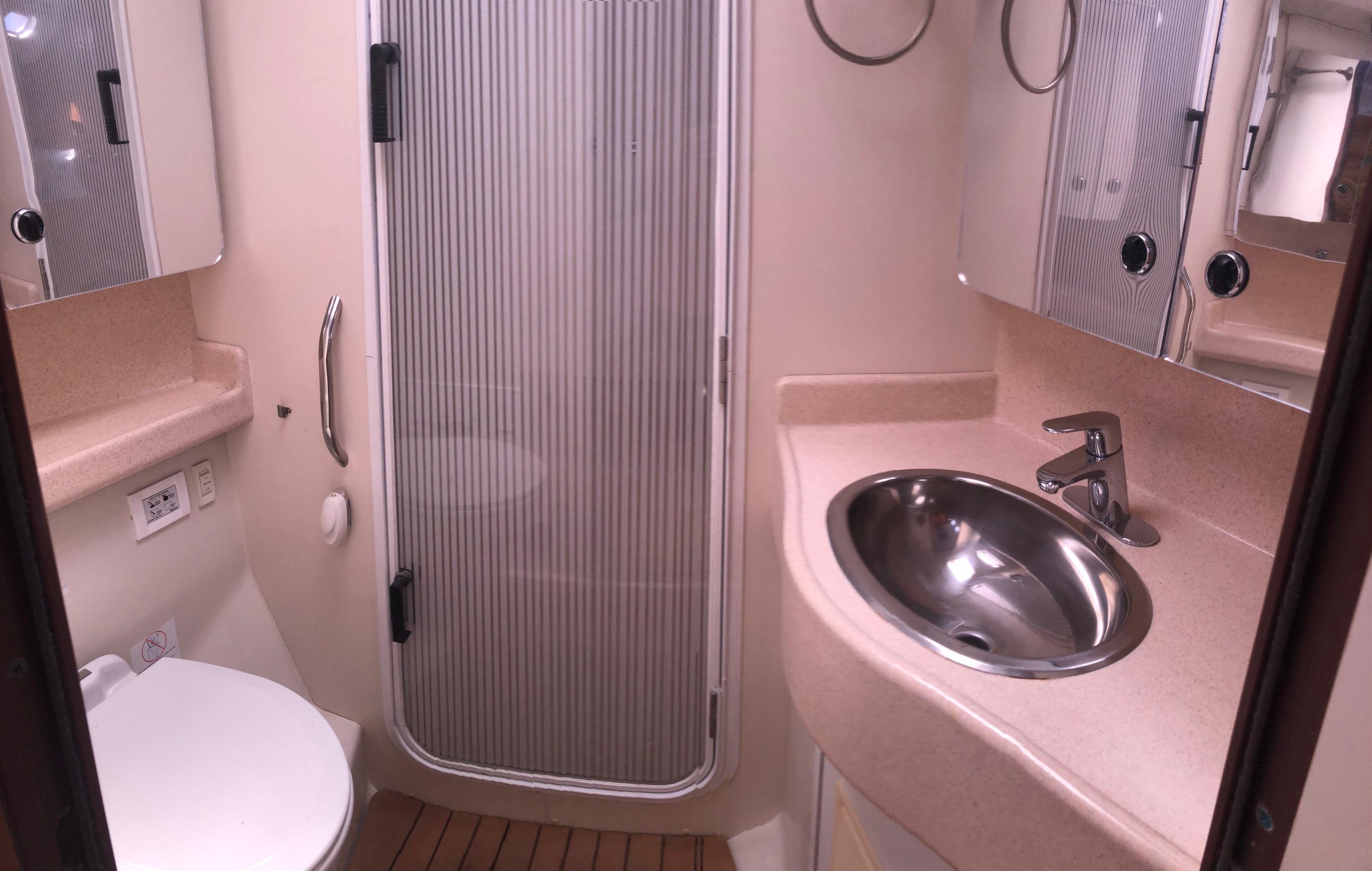

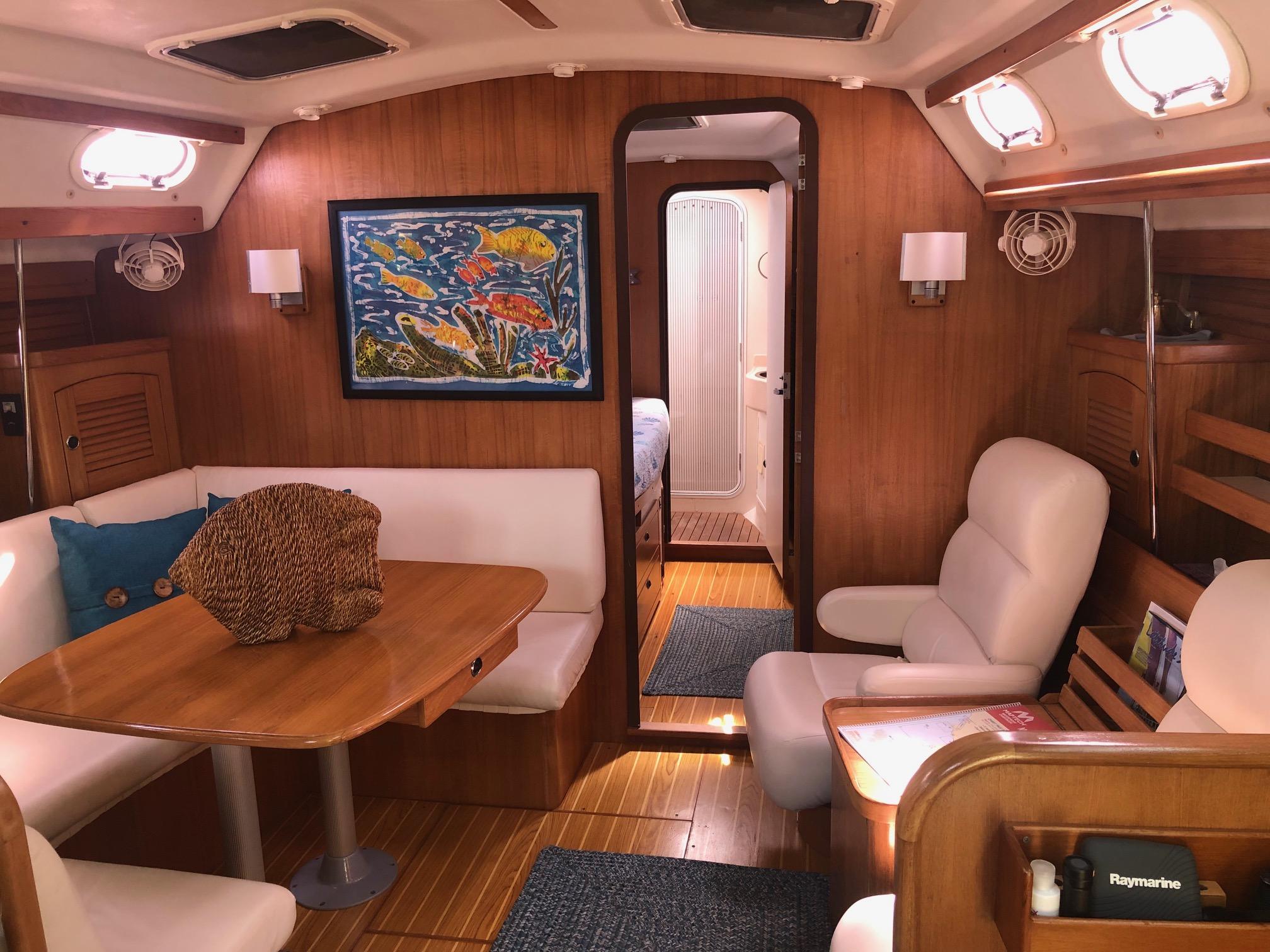

With a center-line companionway, the stairs are very easy to migrate, and handrails along each side, add that extra safety !  A 360* galley is to port of companionway, with storage that is unbelievable!  Adjacent to starboard is a full head, that lends access from salon and also private access to master stateroom.  Master stateroom is just aft of head, stb to companionway with a queen size inline center berth with storage along port and starboard hull.   At the foot of the ben is vanity.   Moving forward in the salon is an In-line Nav Station with ample storage, starboard of companionway.   Forward along the starboard side is TWO Captain's chairs with a custom table / cabinet between.   Nothing tops a long day at sea, but to come down and relax in a semi reclining very comfortable chair and enjoy your favorite cocktail.   Adjacent to port is a large "U" shaped dinette.   Table lowers down to convert to a double berth.   Moving forward is a large double "pullman" berth to port and great hanging lockers and storage along the starboard side.  Fwd is a full head with step in shower area.

• Hydronic Webasto Heating system
• 2019 Ultra-leatherette CREAM throughout salon w/ hi density firm foam
• 2016 RoKu 3 streaming video player
• Samsung 28" TV with Yamaha ATS-1060 sound bar
• Sony AM / FM / 10CD changer / (2) Bose cabin speakers + speakers in cockpit
• (2) Raitan Electric Marine ELEGANCE toilets (fresh water-aft / fresh& salt - fwd head)
• Lighting fixtures upgraded throughout interior
• Teak interior with a teak & holly sole
• Head room 7'6"

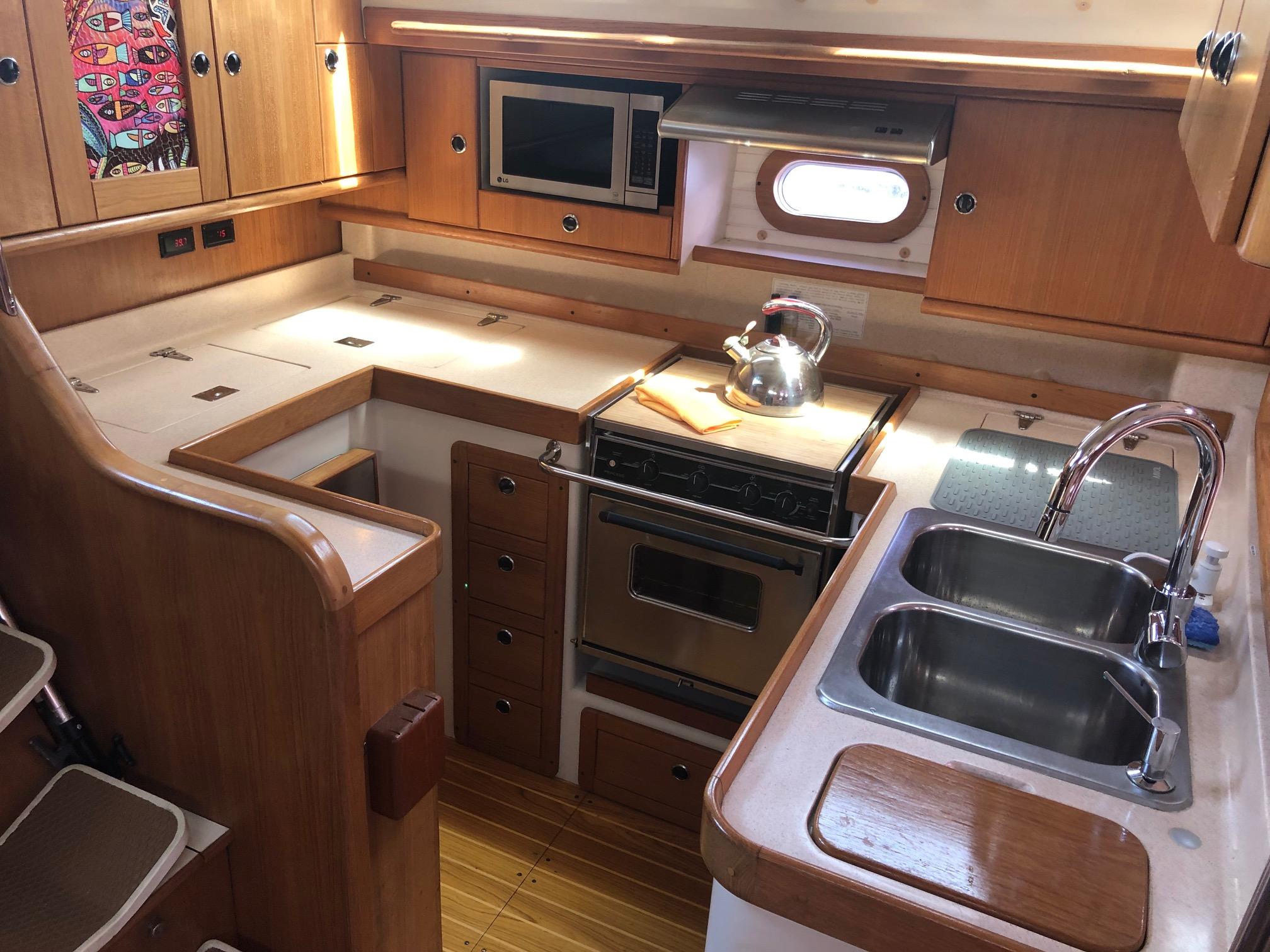

A spacious and very well appointed galley sits port of companionway with cabinetry close to 360* around you.  Lending a very safe galley to work in underway or on the hook.  Storage is beyond the Admirals request !

• Adler Barbour top and front loading refrigeration
• Adler Barbour top loading freezer
• Adler Barbour temperature control unit
• 3 burner gimbaled Princess propane stove and oven
• Deep double SS sink
• 2019 upgraded sink faucet with Grohe single lever
• 2016 LG Microwave

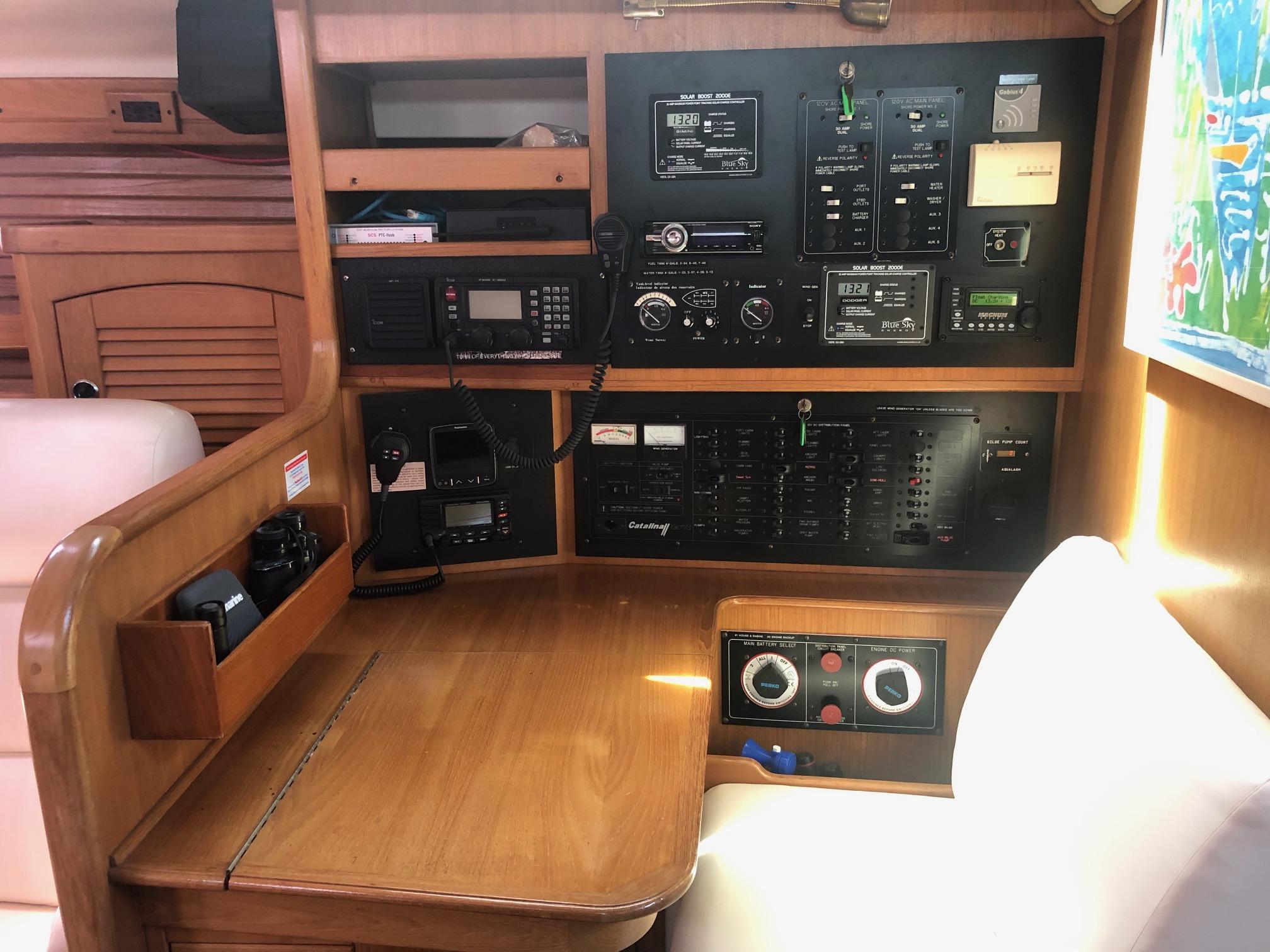

In line Nav Station sits starboard of companionway with ample storage and 12v / 110 panel at your finger tips.

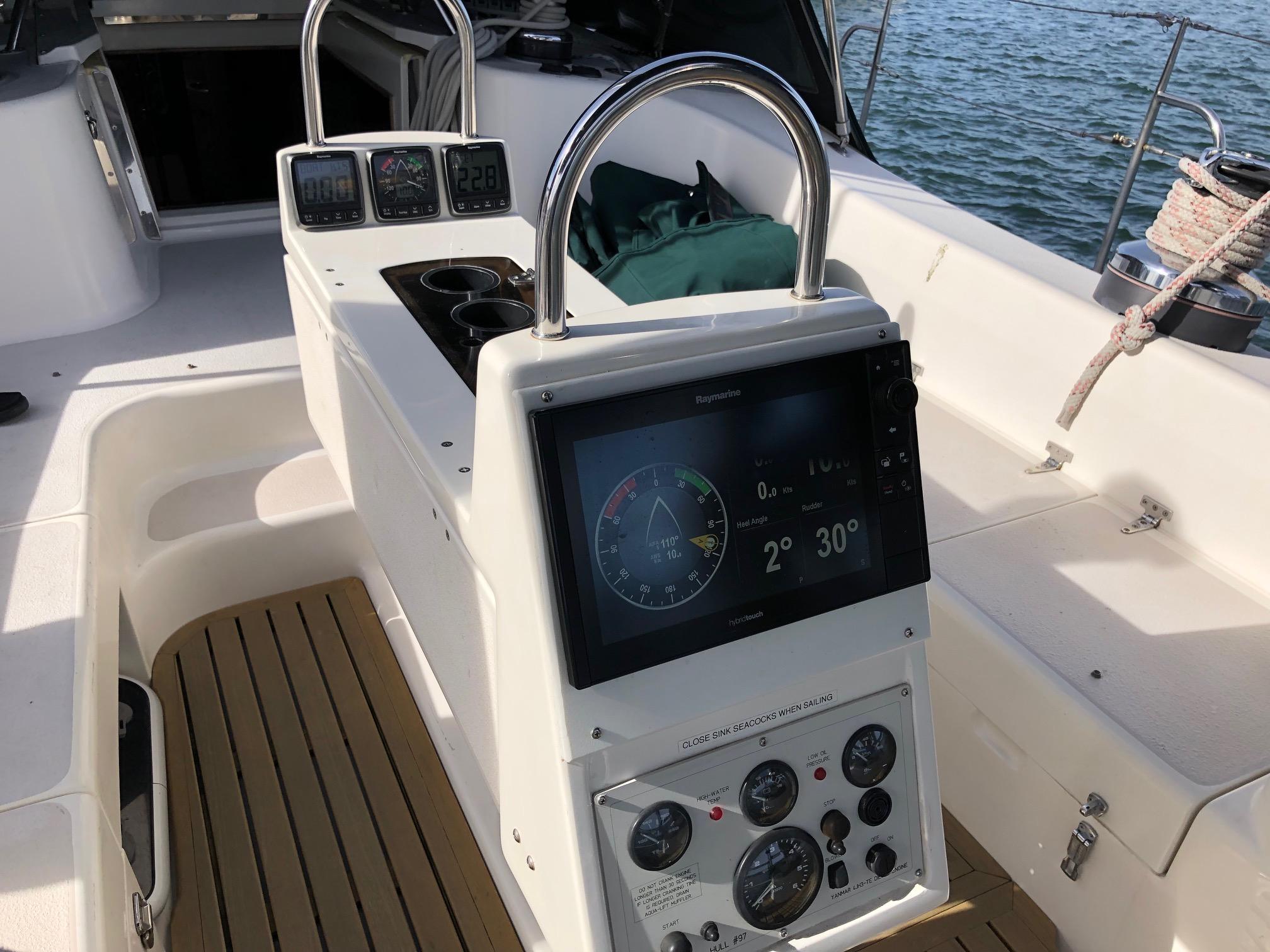

• 2017 Raymarine eS127 Hybrid Touch Chartplotter at helm
• 2017 Raymarine Quantum Radar
• 2017 Raymarine i60 Windspeed-point
• 2017 Raymarine i50 Speed and Depth @ helm
• 2015 Raymarine EV-400 w p70 control head (custom backing plate for a ram mounted autopilot
• 2015 Raymarine GPS 130 Senson
• (2) Ritchie Powerdamp 4" compass
• 2013 Raymarine AIS 650
• 2008 ICOM IC-M802  SSB
• Davis Windex masthead vane
• 2012 Standard Horizon Explore w/ Ram Mic
• 2015 Raymarine i70 Multi display at Nav Station
• La Crosse digital weather station
• 2014 Digital marine router and long-range Wi-Fi antenna

• Yanmar 75 hp    4cyl   FWC   model # 4JH3-HTE   Serial # E11034
• approx 2630 hrs.
• Propeller:   PYI Max Prop   4- blade feathering 20" D 2018
• Balmar high output alternator - 2018  (increase from 2.5" to 3.25")
• Gauges:  Catalina cutom panel: tach/hour meter, il pressure, water temp, voltmeter.. monitoring system connected to Sea Talk network
• Twin, Edson Pedestal w/ 32" Destroyer wheels
• Morse single lever control at stbd helm
• Engine located below companionway stairs with easy access
• Additional insulation added to engine room
• 2017 Replaced Yanmar heat exchanger assembly and core & lower port coolant hose
• 2017 Replaced fuel lines between fuel filter and all injectors
• 2017 Replaced collant line between water pump and turbo housing
• Engine raw water strainer accessible

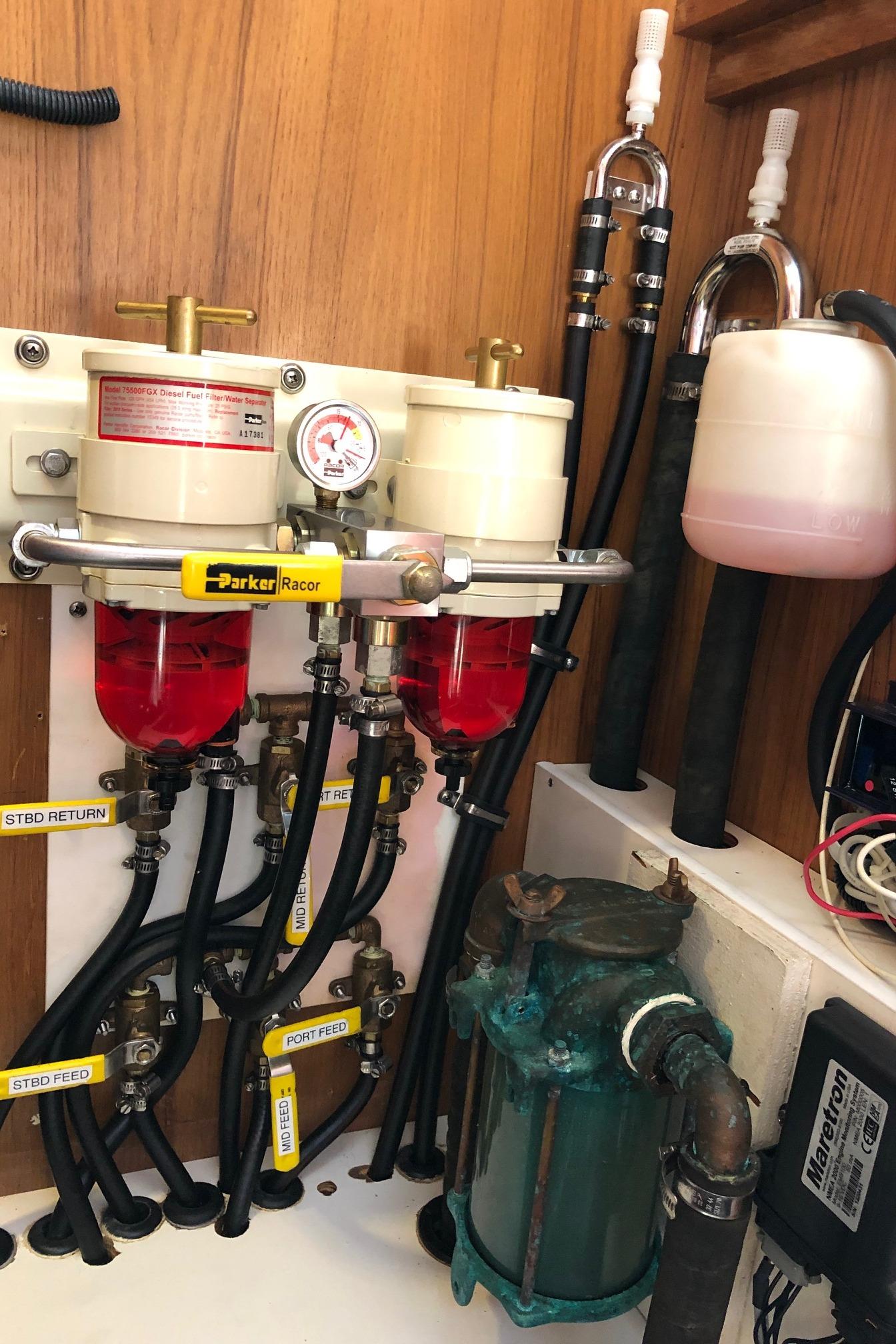

• Dual Racor fuel filters with multiple fuel monifolds
• PYI Packless Shaft Seal (PSS) - 2018
• 1 1/2" Stainless Steel shaft

• 2015 Air Breeze WIND GENERATOR

• 2005 (3) Larland 60w SOLAR panels mounted on Bimini frame

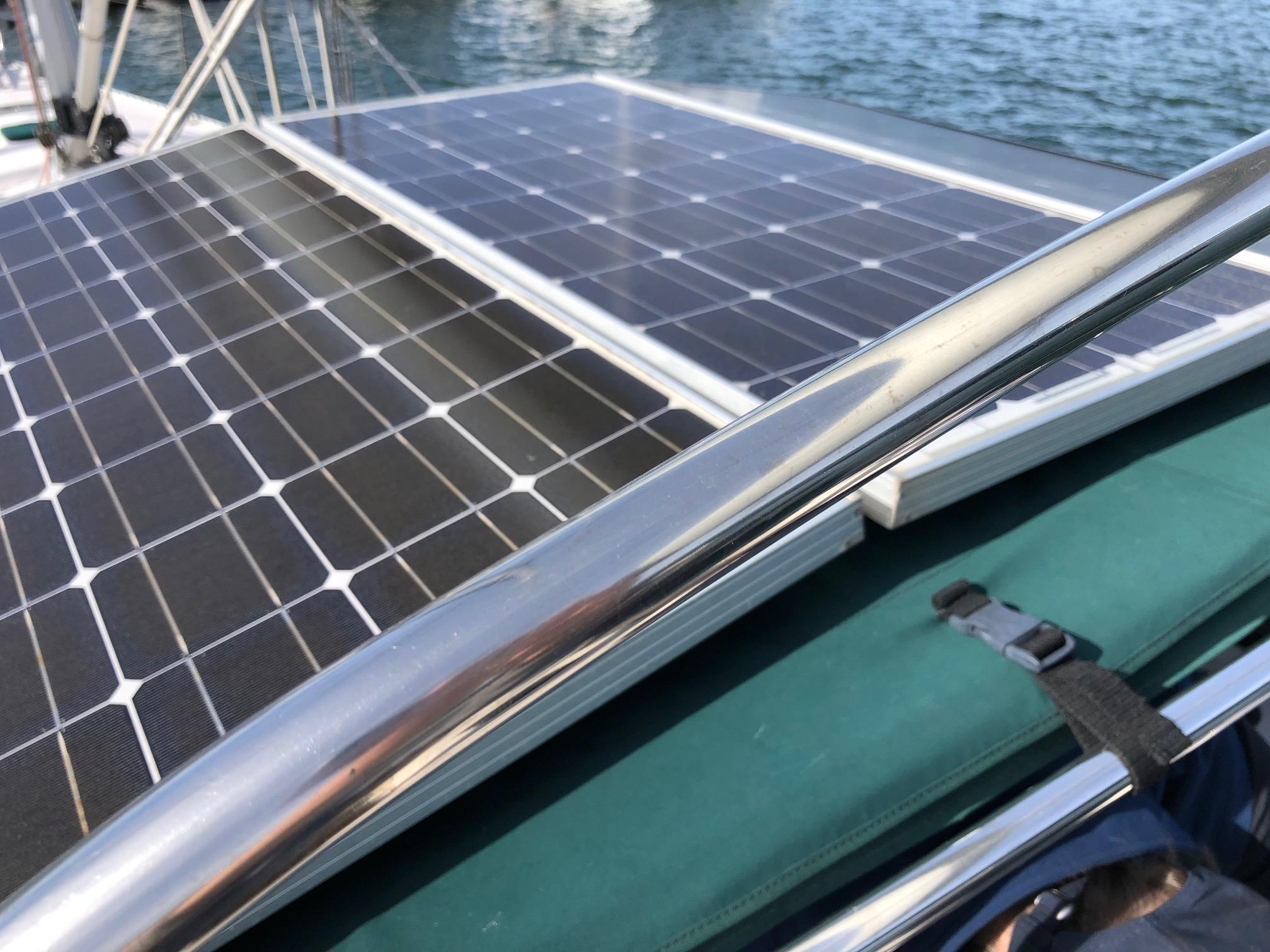

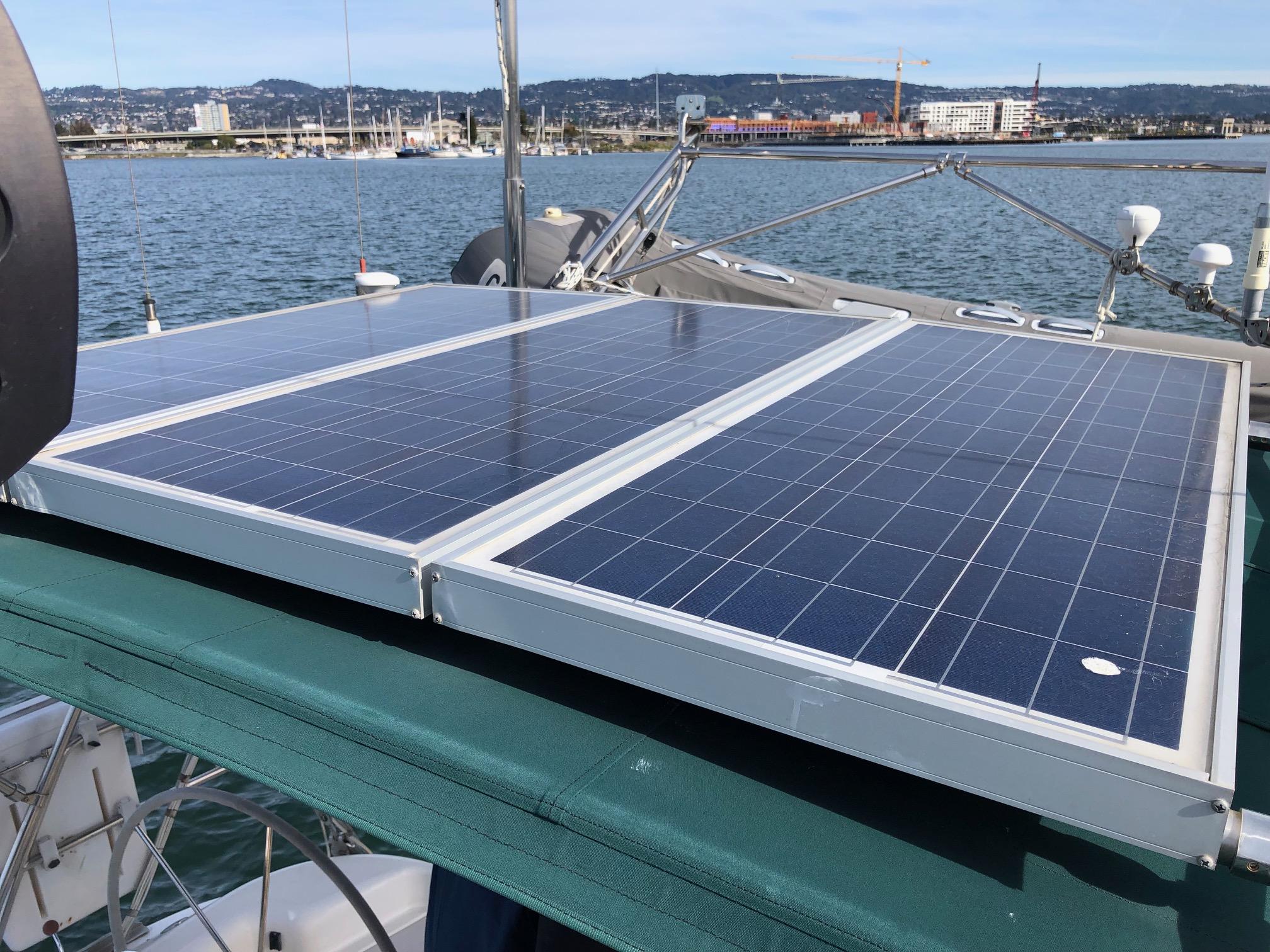

• 2015 (3) Shell 85s SOLAR panels mounted above Dodger

• 2015 (3) 8D LIFELINE Batteries
• 2016 Magnum 2812 Inverter

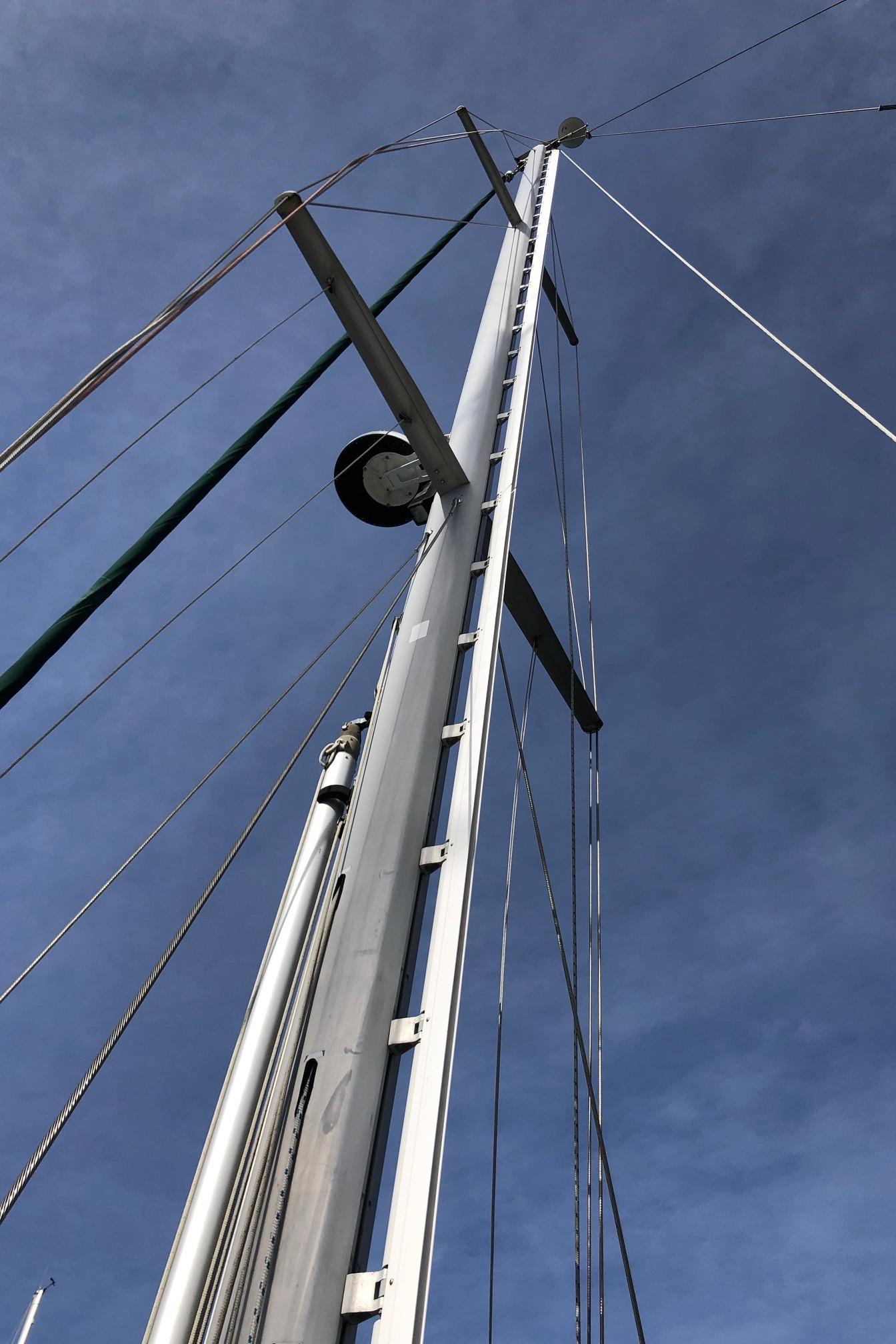

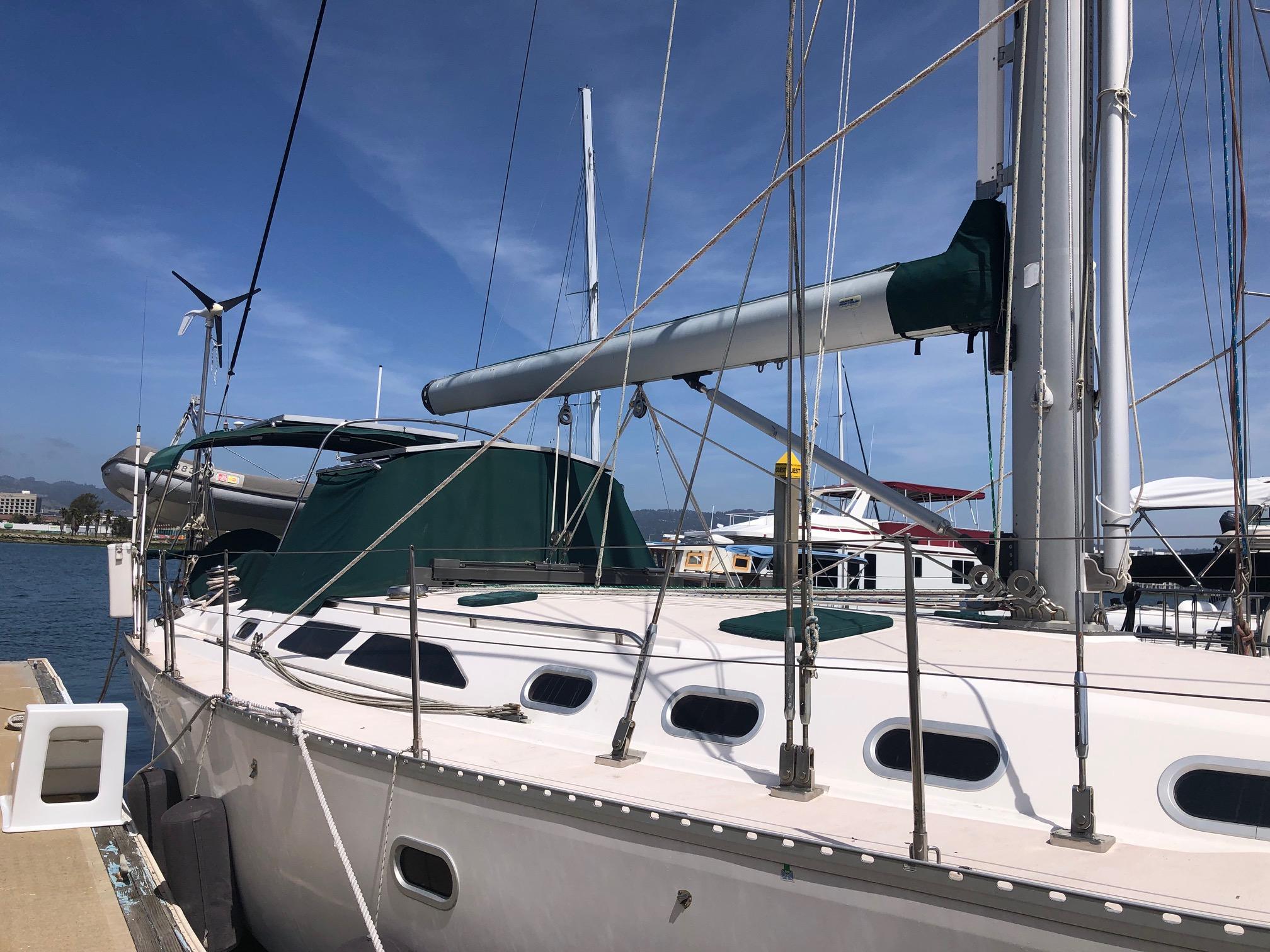

• Deck stepped - double spreader masthead rig
• Charleston aluminum rig
• STANDING RIGGING replaced 2010
• Stb back stay w/ GAM slide for SSB antenna 2018
• Schaeffer 3100 roller furling system
• Inboard genoa tracks with ball bearing cars

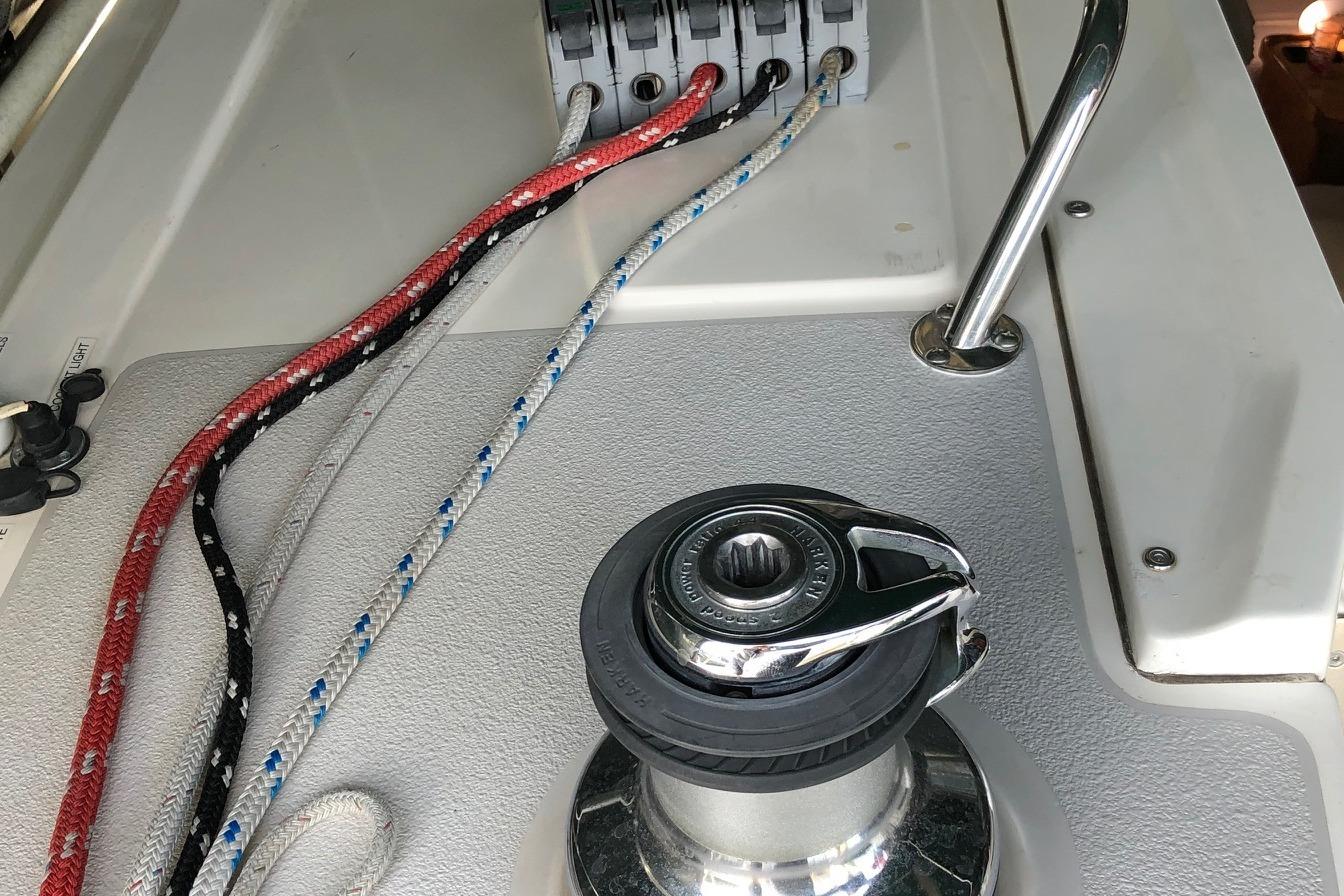

• All lines led aft to cockpit to (10) Lewmar rope clutches
• (2) Harken #66 ST Primary Winches

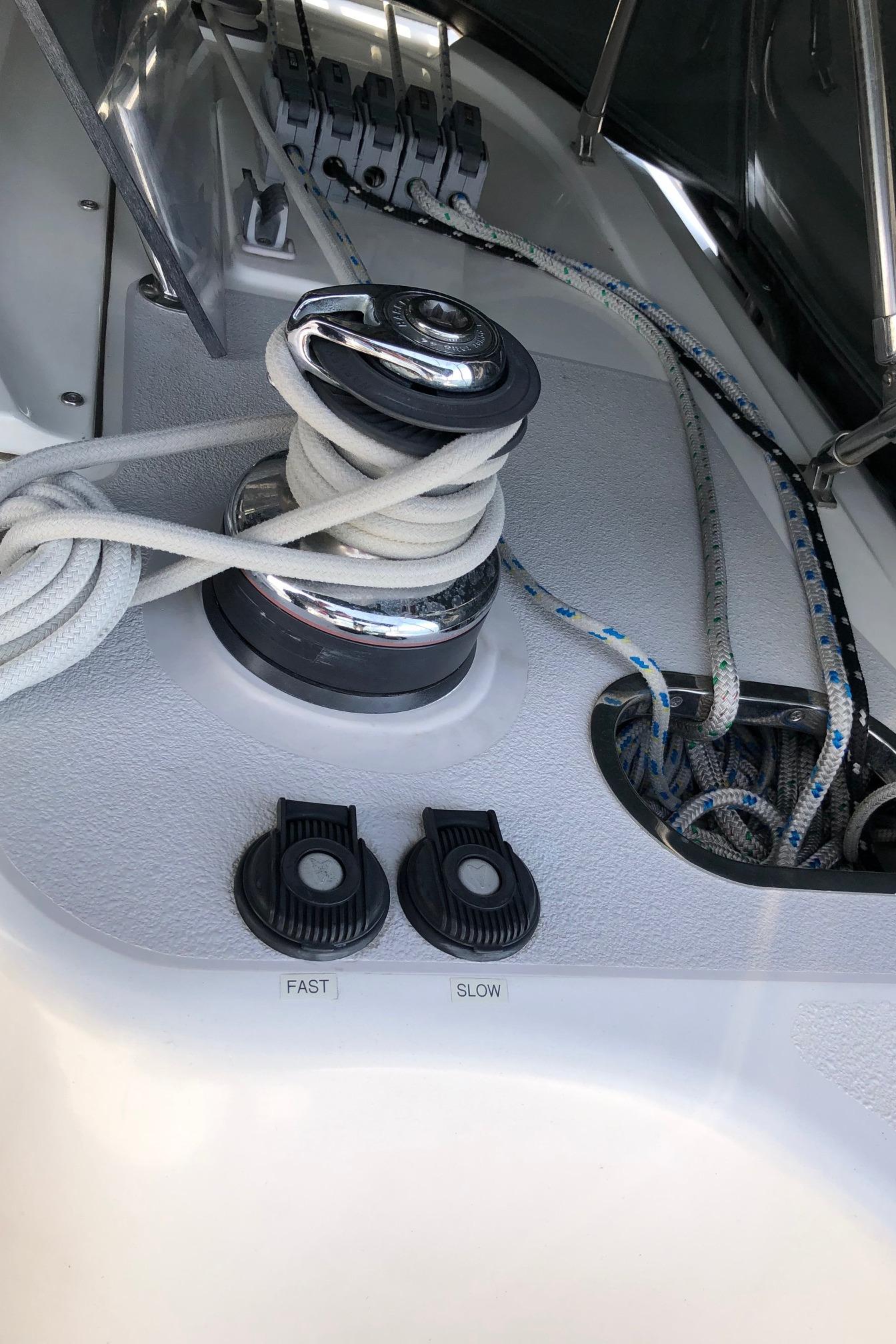

• (2) Harken #44 ST Cabin top winches (STARBOARD IS ELECTRIC)

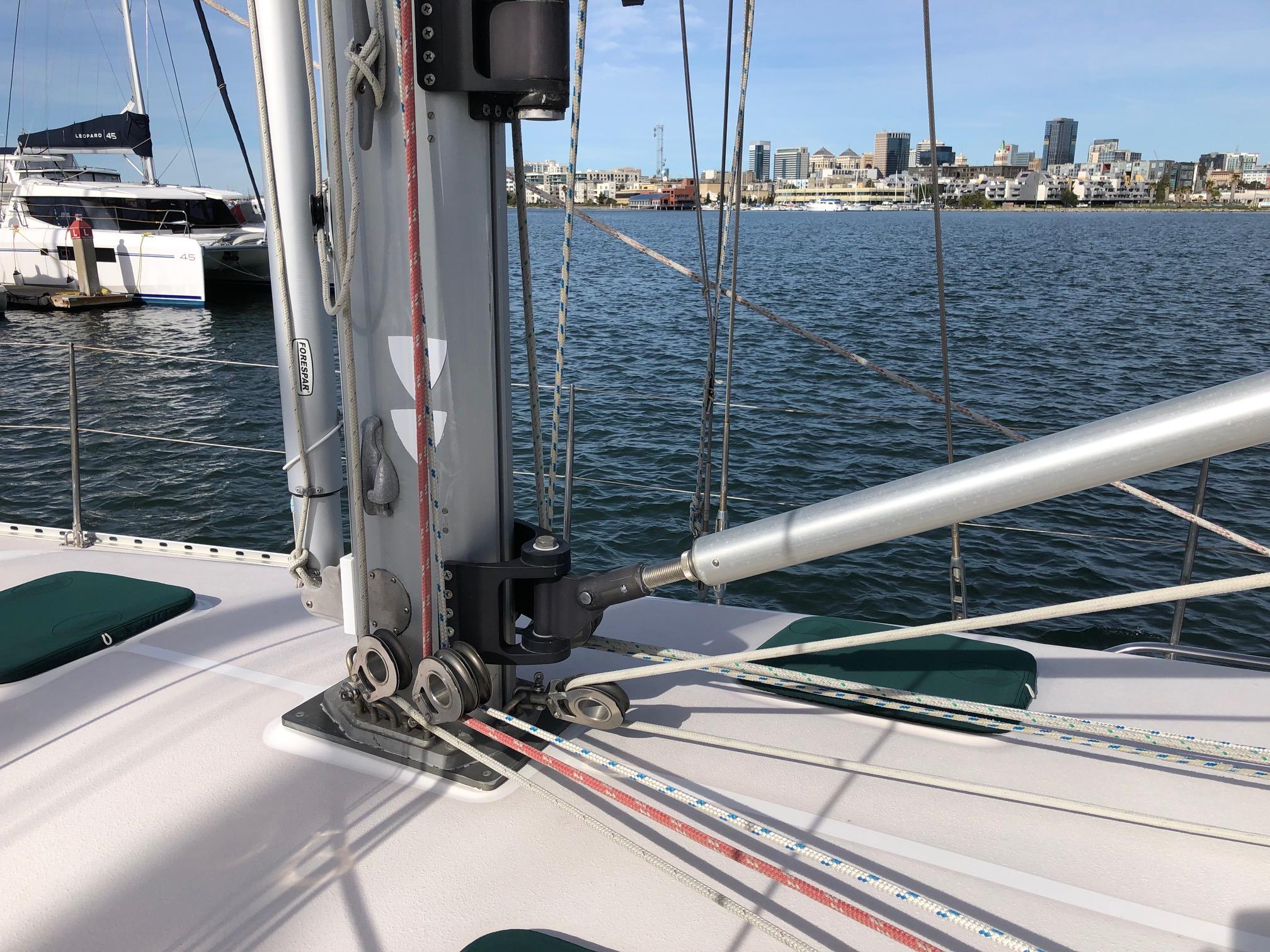

• 2003 UPGRADED from standard mast to IN -BOOM furling main
• Ridgid boom vang
• 2010 Doyle 110% jib
• 2019 Doyle 90% tri-radial
• Asy Spinnaker w/ dousing sleeve
• Forespar pole, stored at mast

• Single skin gel coat over multiple layers of resin impregnated fiberglass
• Hand-laid laminate hull & partial hull liner / structural grid, end-grain balsa core above water line
• FIN Keel  (LEAD)
• 2014 Soni-hull ultrasonic hull growth inhibiter

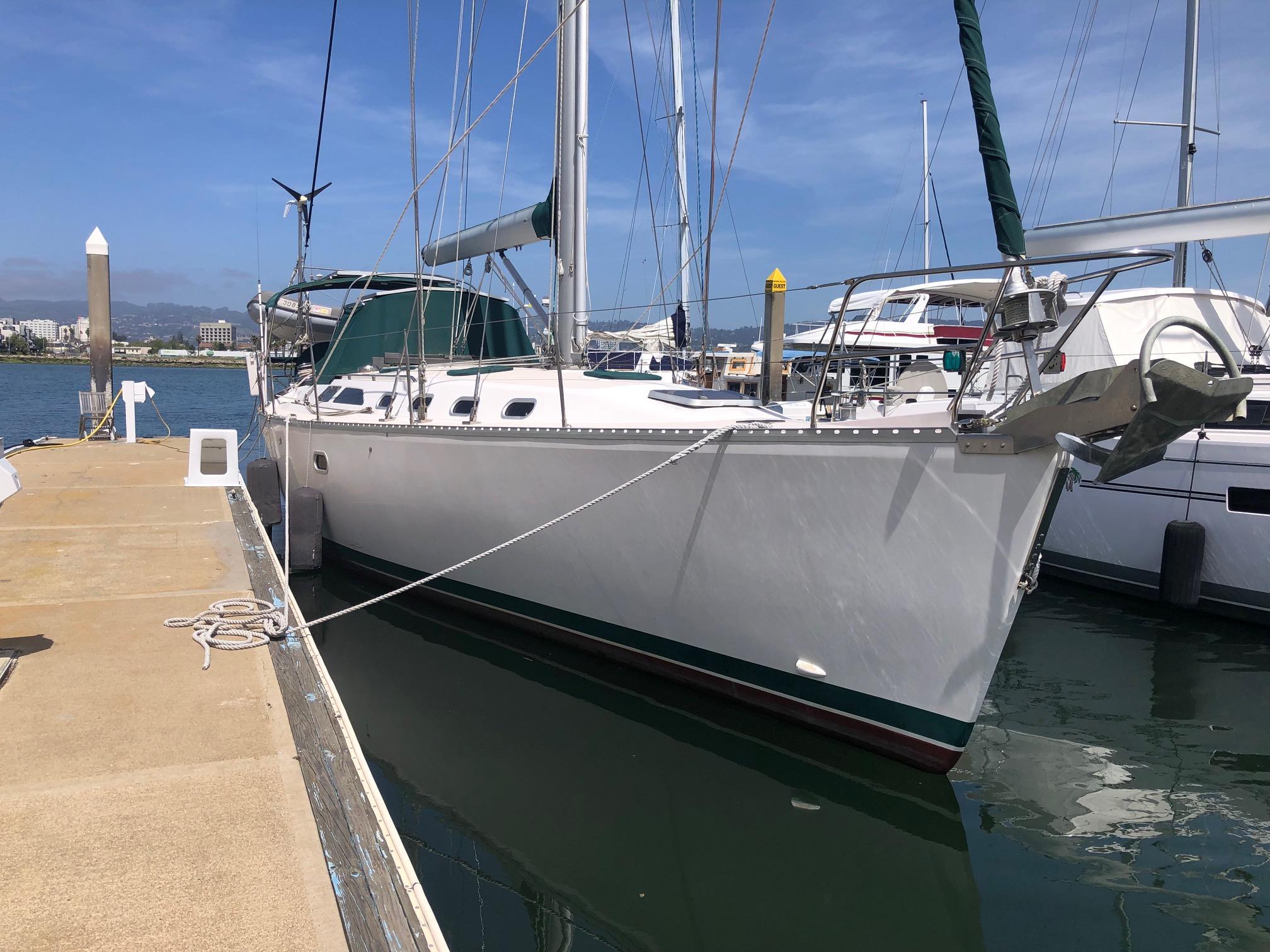

• White hull with green boot strip
• Extruded aluminum toerail

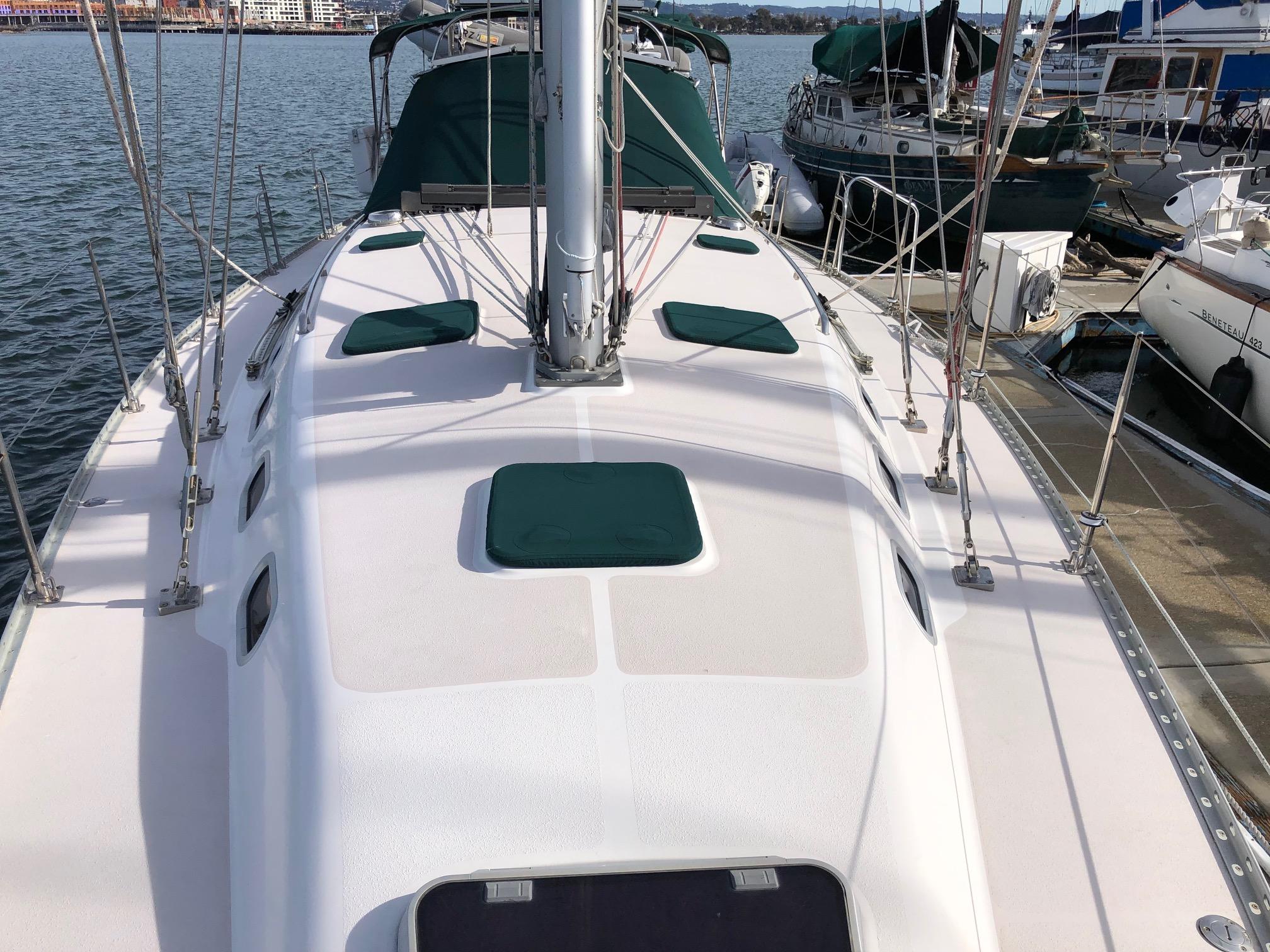

• Molded deck and deck liner with end-grain balsa core
• White deck with grey two-tone non skid
• Low-profile cabin trunk
• Stainless steel handrails along cabin top
• Mooring cleats, two fore and two aft
• Midship spring line cleats
• Large double anchor rollers

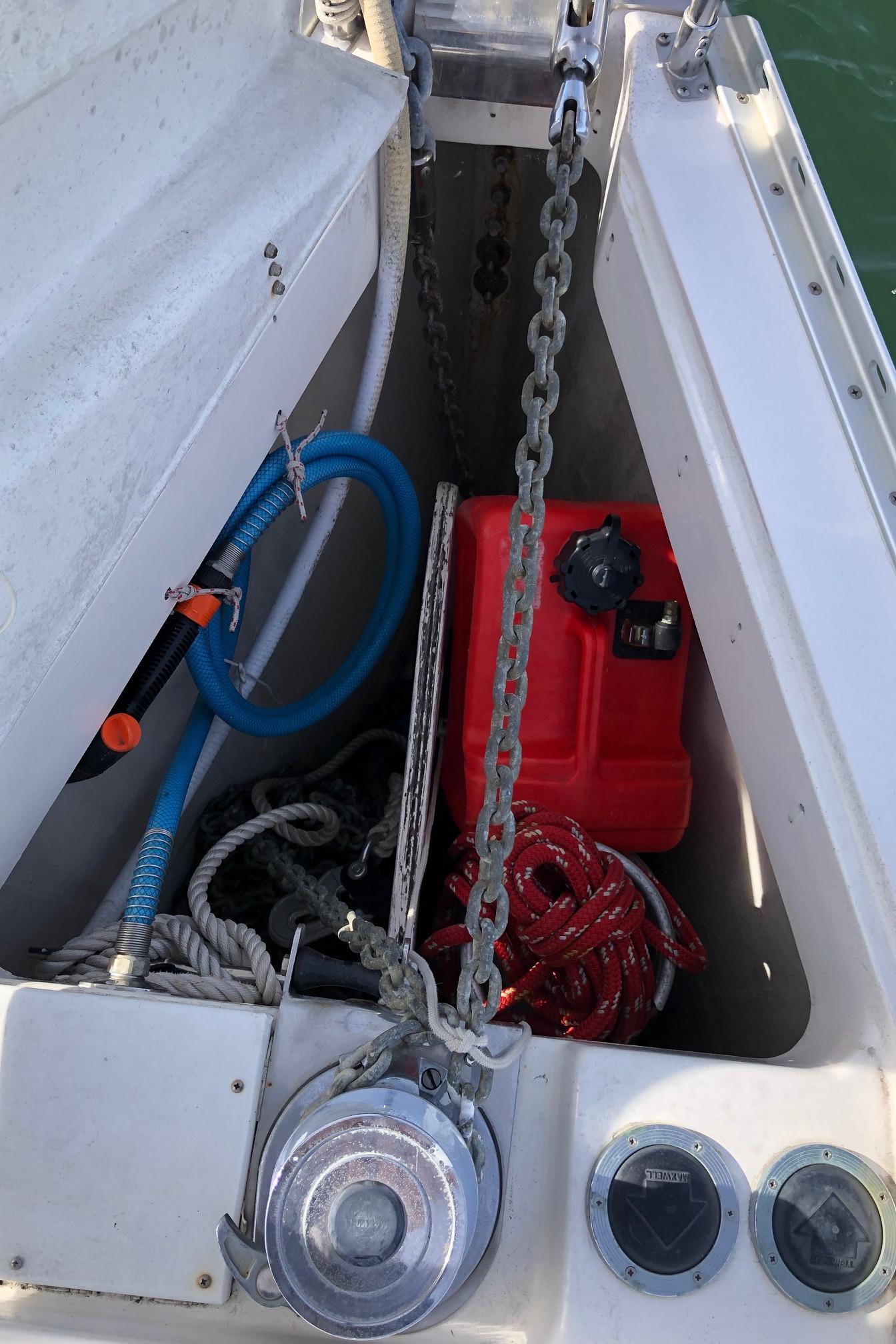

• Anchor locker with divider and scuppers
• 2015 Anchor wash down system
• Electric Maxwell 1200 anchor windlass with power up and down foot switches
• 2019 Galvanized Rocna  30kg (66 lb) with 250' 5/16 chain
• 2019 Bruce 44#  10' chain and 300' rode
• Spare Fortress FX 23
• Stainless steel double high bow and stern pulpit
• Double high life lines with boarding gates port and starboard
• Large cockpit with walk thru transom w/ built in swim step
• Dual helm
• (2) propane locker
• Drop down SS boarding ladder that is interrogated into stern rail
• Fresh Hot / Cold stern shower
• Fiberglass cockpit table with fold down leafs and hand rails at both ends
• Teak cockpit grates

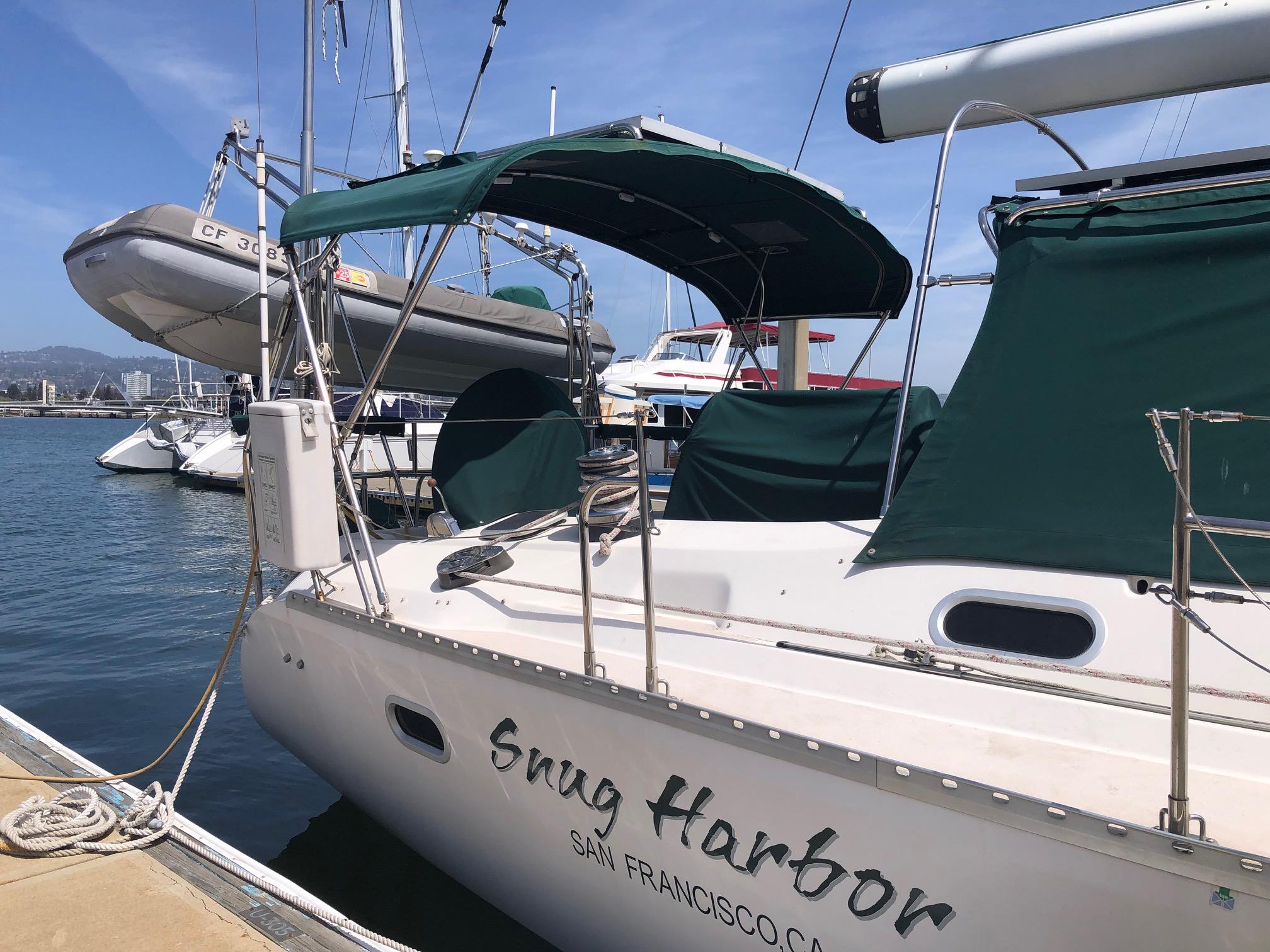

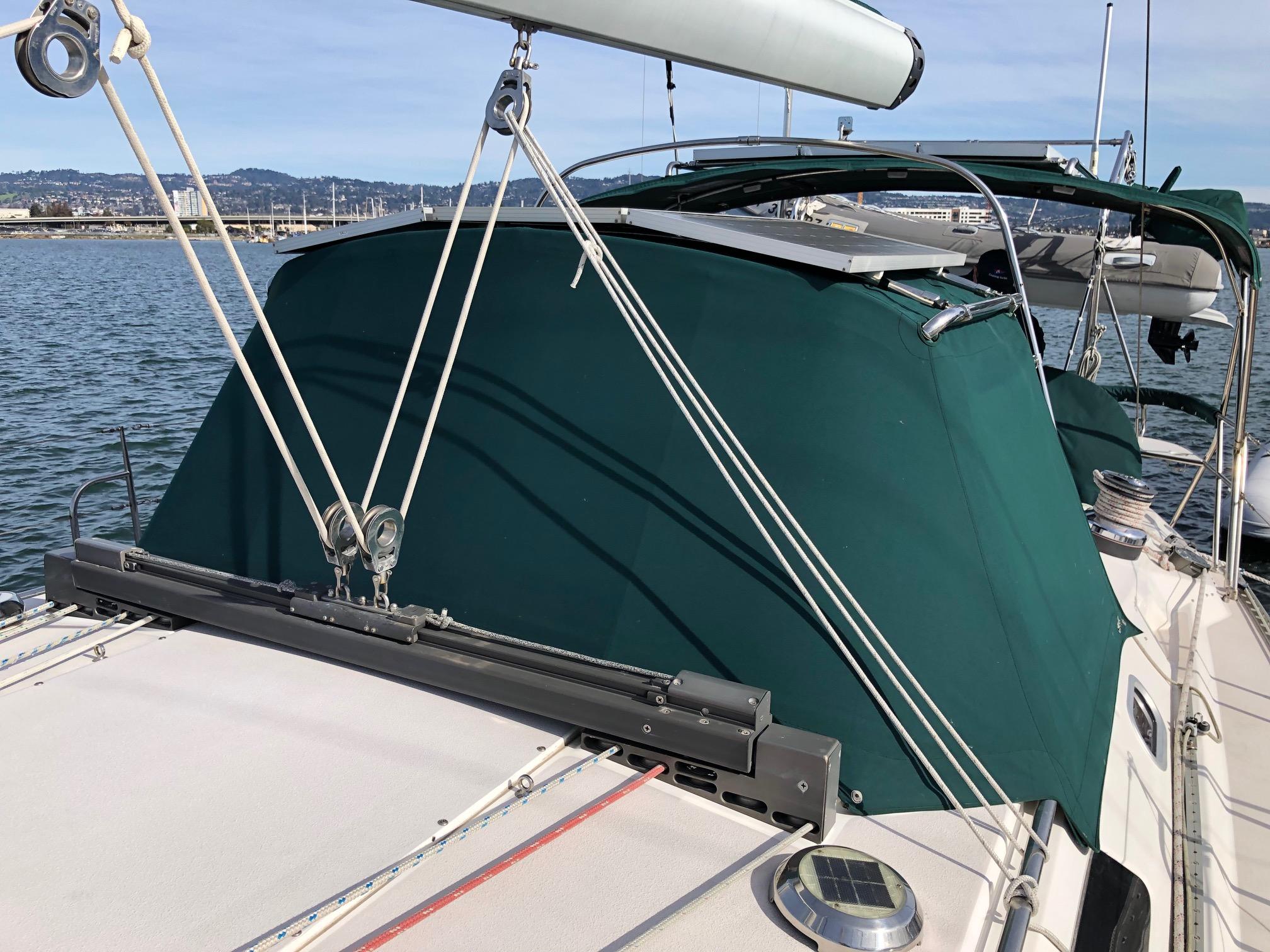

• Dodger / Bimini with enclosure

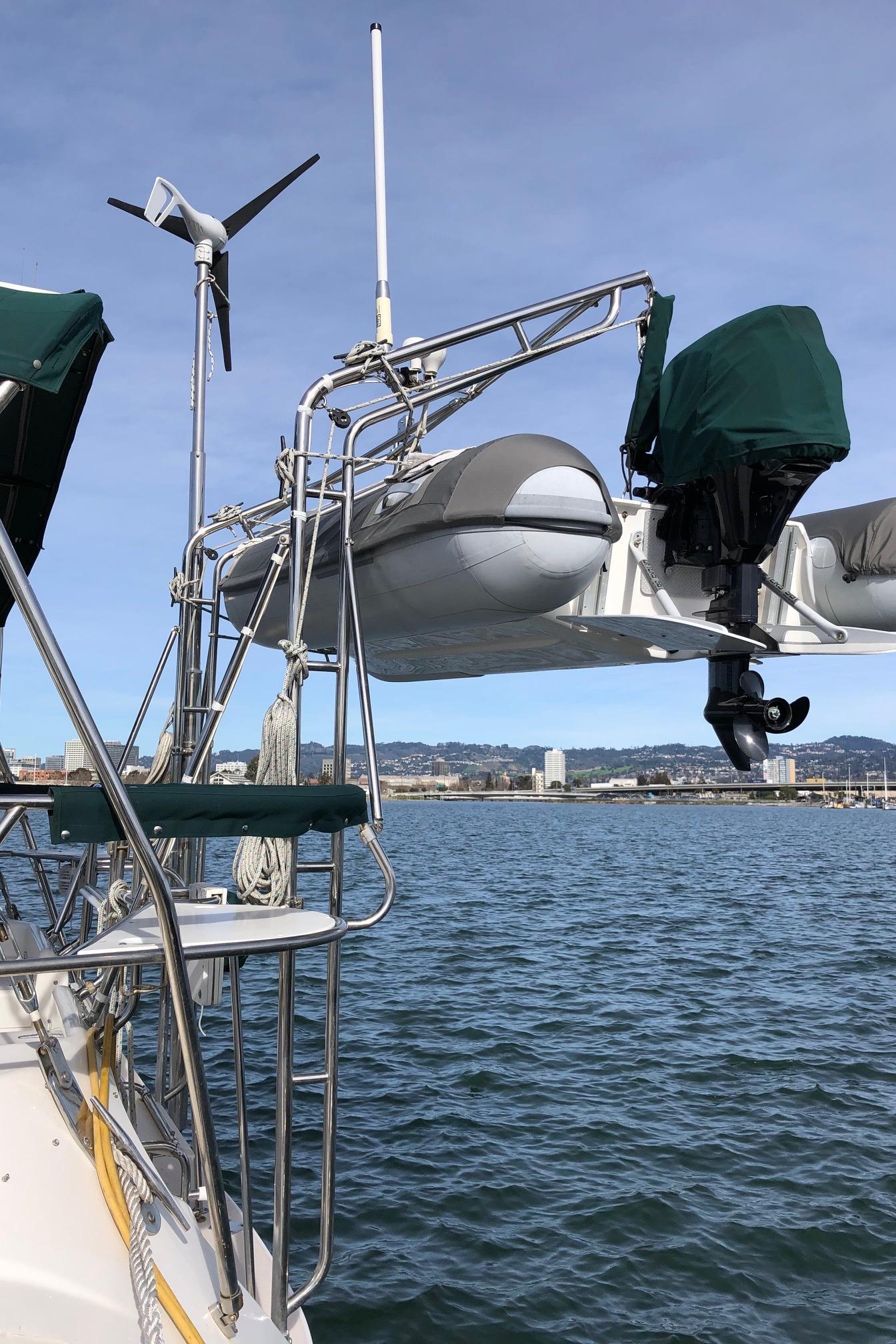

• Davits / Dingy & OB
• Wind generator
• Cockpit cushions

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
